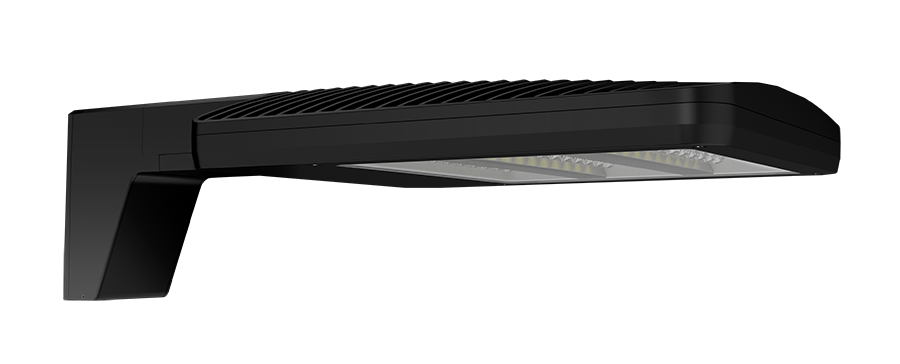

RAB ALED 40W-50W-66W At 5000K Pole Mount Black (ALEDSATB)

SKU ALEDSATB
by RAB
Original price $680.00 - Original price $680.00
Original price
$680.00
Backorder: Usually Ships in 4-7 Days
Product Description

This small ALED area light mounts on an arm bracket to a square or round pole and delivers broad, controlled light across parking lots, drive aisles, and perimeter zones. The universal arm fits bolt-hole spacing from 1 inch to 3 inch, and a round-pole adapter plate ships with every fixture so the same black housing handles either pole style without a hardware swap.

Field-selectable 40W, 60W, or 80W output lets one SKU cover a range of pole heights and site layouts, with 80W set as the factory default and the step-down switch tucked behind the housing door for in-field changes. At 5000K, the output is a crisp cool white that reads clearly at height and keeps edges and signage well-defined after dark.

Features

  • Field-Selectable Wattage: 40W, 60W, or 80W selectable on the fixture; factory default 80W
  • Light Output: 5,861 lumens at 40W, 8,148 lumens at 60W, 11,008 lumens at 80W; replaces a 250-watt metal halide
  • Color Temperature: 5000K Cool
  • Color Rendering: 81-82 CRI
  • Lifespan: 100,000-hour L70 LED life
  • Dimming: 0-10V dimmable to 10% standard
  • Voltage: 120-277V multi-volt driver
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Housing: Die-cast aluminum in Black with aluminum reflector and white polycarbonate secondary
  • Mounting: Universal arm bracket with 1" to 3" bolt-hole spacing; round-pole adapter plate included

Ideal For: Parking Lots • Drive Aisles • Perimeter Areas • Car Dealerships • Loading Zones • Wall Pack Replacements

UL Listed and suitable for wet locations. IP66 ingress protection for dust and water. Cold-start rated to -40°F with a 104°F maximum ambient. 3G vibration rated per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 5861/8148/11008 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
