Product Description

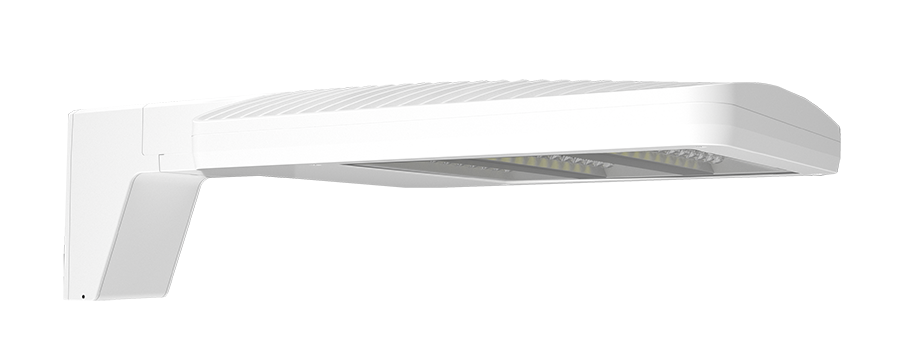

This small ALED area light pairs a universal arm mount with field-selectable 40W, 60W, or 80W output in a white housing, giving one SKU the flexibility to cover parking lots, corporate campuses, and service drives from standard square or round poles. The Type V distribution throws a wide, symmetric 360° pattern that fills open ground evenly without hot spots.
The 3000K warm white softens the visual impact on neighboring buildings and keeps night-sky brightness low, and the fixture is Dark Sky Approved and LUNA 5.1 listed for jurisdictions where dark-sky compliance drives the spec. A 7-pin twist-lock receptacle on top accepts photocontrols or networked control nodes for scheduling, dimming, and remote monitoring. The white finish stands out cleanly against lighter facades and reflects more ambient light back off the housing itself.
Features
-
Wattage: Field-selectable 40W / 60W / 80W (factory default 80W)
-
Lumen Output: 5,918 lumens at 40W, 8,136 lumens at 60W, 11,010 lumens at 80W
-
Efficacy: 135.4 to 146.1 lumens per watt
-
Color Temperature: 3000K Warm White
-
CRI: 82 (83 at 40W)
-
L70 Lifespan: 100,000 hours
-
Distribution: Type V (wide symmetric 360°)
-
Replaces: 250W metal halide
-
Input Voltage: 120-277V multi-volt
-
Surge Protection: 10kV line-to-line, 6kV line-to-ground
-
Housing: Die-cast aluminum with high-durability finish
-
Finish: White
-
Mount: Universal arm, fits round or square poles with 1" to 3" bolt spacing; round pole adapter included
-
Controls: 7-pin twist-lock receptacle (NEMA) for photocontrols or networked control nodes; 0-10V dimmable, dims to 10%
Ideal For: Parking Lots • Corporate Campuses • Service Drives • Retail Parking • Industrial Yards
UL Listed for wet locations. IP66 rated against dust and water ingress. Cold-start to -40°F, operates to a 104°F maximum ambient. 3G vibration rated per ANSI C136.31.
