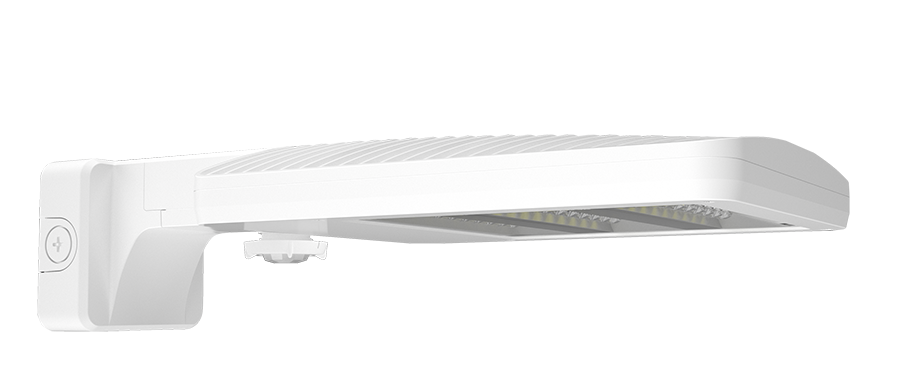

RAB ALED Field Adjustable Area Light 80W/60W/40W Type V 3000K Wall Mount Wattstopper Sensor 20 Foot Lens White (ALEDS5TWMYW/WS2)

This small ALED area light mounts directly to a wall or vertical building surface in a white housing, throwing broad, controlled light across loading zones, service drives, and perimeter areas without requiring a pole. Field-selectable 40W, 60W, or 80W output and a Type V distribution let one fixture cover a wide 360° area with even brightness on the surrounding ground.

The 3000K warm white softens the visual impact on neighboring buildings and keeps night-sky brightness low, and the fixture is Dark Sky Approved and LUNA 5.1 listed for jurisdictions where dark-sky compliance drives the spec. A WattStopper FSP-301 motion sensor ships pre-wired and factory-set for a 20-foot detection diameter, cutting power during unoccupied hours without a separate control circuit. The white finish stands out cleanly against lighter facades and reflects more ambient light back off the housing itself.

Features

• Wattage: Field-selectable 40W / 60W / 80W (factory default 80W)
• Lumen Output: 5,918 lumens at 40W, 8,136 lumens at 60W, 11,010 lumens at 80W
• Efficacy: 135.4 to 146.1 lumens per watt
• Color Temperature: 3000K Warm White
• CRI: 82 (83 at 40W)
• L70 Lifespan: 100,000 hours
• Distribution: Type V (wide symmetric 360°)
• Replaces: 250W metal halide
• Input Voltage: 120-277V multi-volt
• Surge Protection: 10kV line-to-line, 6kV line-to-ground
• Housing: Die-cast aluminum with high-durability finish
• Finish: White
• Mount: Wall-mount bracket for vertical building surfaces
• Controls: WattStopper FSP-301 motion sensor pre-wired and set to a 20-foot detection diameter; 0-10V dimmable, dims to 10%

Ideal For: Loading Zones • Service Drives • Perimeter Lighting • Industrial Yards • Wall Pack Replacement

UL Listed for wet locations. IP66 rated against dust and water ingress. Cold-start to -40°F, operates to a 104°F maximum ambient. 3G vibration rated per ANSI C136.31.
