Product Description

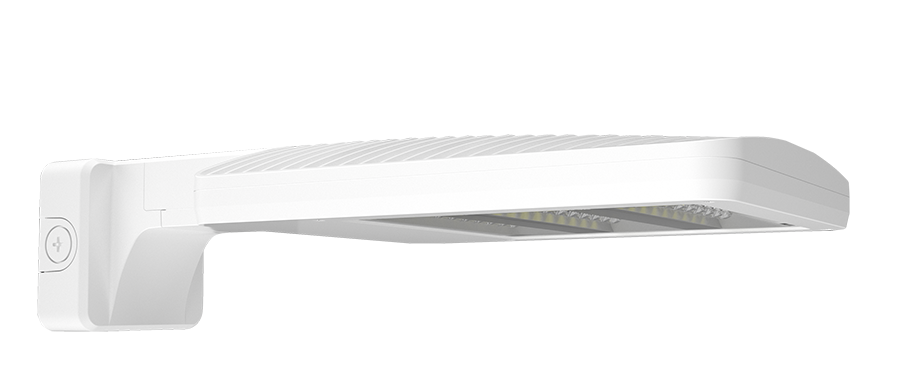

This 80-watt ALED small area light mounts directly to a wall or vertical building surface, throwing Type IV distribution across parking areas, service drives, and loading zones without requiring a pole. Wattage is selectable on the fixture between 40, 60, and 80 watts, letting one SKU replace a 150-, 175-, or 250-watt metal halide. The die-cast aluminum housing comes in white and delivers a 3000K warm white on 120 to 277 volts with 0-10V dimming down to 10%.
Surge protection runs 10 kV line-to-line and 6 kV line-to-ground, and the fixture carries a 3G vibration rating per ANSI C136.31 for pole-top and building-mounted locations exposed to traffic or wind.
Features
-
Wattage: 40W / 60W / 80W field-selectable (80W factory default)
-
Lumen Output: 5,822 lumens at 40W / 8,095 lumens at 60W / 10,936 lumens at 80W
-
Color Temperature: 3000K warm white
-
Color Accuracy: 82 CRI
-
Replaces: 150W, 175W, or 250W metal halide depending on wattage setting
-
Light Distribution: Type IV (semicircular, suited for perimeter and wall placement)
-
Efficacy: Up to 144 lumens per watt at the 40W setting
-
Voltage: 120-277V multi-volt
-
Dimming: 0-10V down to 10% (requires separate 0-10V dimming circuit)
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Housing: Die-cast aluminum, white finish
-
Mounting: Direct wall mount to vertical building surface
-
Weight: 13.2 lbs
-
L70 Lifespan: 100,000 hours
Ideal For: Parking Lots • Loading Zones • Service Drives • Building Perimeters • Wall Pack Replacement
UL Listed for wet locations with IP66 ingress protection. Dark Sky Approved in 3000K under the IDA fully-shielded standard, with LUNA 5.1 listing for nighttime-sensitive zones. Cold-start to -40°F and rated for ambient temperatures up to 104°F. 3G vibration rating per ANSI C136.31.
