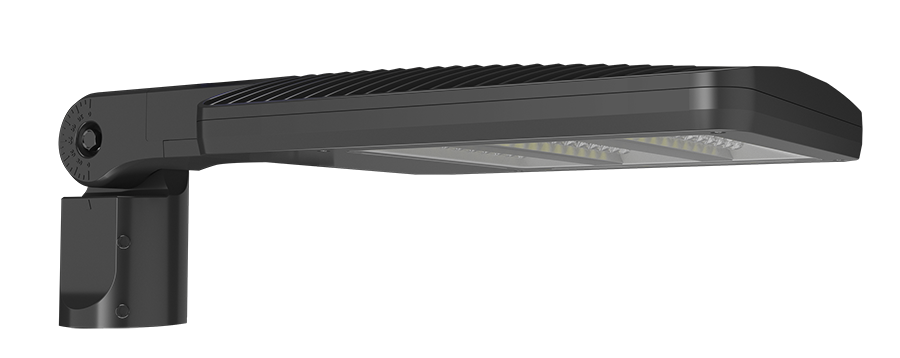

RAB ALED Field Adjustable Area Light 80W/60W/40W Type IV 3000K Slipfitter Mount Bronze (ALEDS4TSFY)

RAB ALED Field Adjustable Area Light 80W/60W/40W Type IV 3000K Slipfitter Mount Bronze (ALEDS4TSFY)

SKU ALEDS4TSFY
by RAB
$680.00 - $680.00
$680.00
Backorder: Usually Ships in 4-7 Days
Product Description

This ALED Small area light installs on a slipfitter tenon and aims broad Type IV illumination across parking areas, service drives, and pole-mounted site lighting. Field-adjustable output covers 40, 60, or 80 watts on the fixture, so the same housing spec's across a whole site and gets dialed to the load at each pole.

Features

  • Distribution: Type IV (semicircular; suited to building perimeters and parking area edges)
  • Wattage: Field-adjustable 40W / 60W / 80W on the fixture (factory default 80W)
  • Lumens: 5,468 / 7,517 / 10,172 lm at 40W / 60W / 80W (3000K warm white)
  • Efficacy: Up to 125.4 lm/W at 80W
  • CRI: 82+
  • Input Voltage: 120–277V, 50/60Hz
  • Dimming: 0–10V standard, dims to 10%
  • Rated Life: 100,000 hours (L70, per IES LM-80 and TM-21)
  • Housing: Die-cast aluminum with high-temperature silicone gaskets
  • Finish: Bronze, high-durability powder coat formulated for long-lasting color
  • Mounting: Slipfitter mount
  • Surge Protection: 10kV line-to-line, 6kV line-to-ground
  • BUG Rating: B1 U0 G2 across all three wattage steps
  • Wattage Equivalency: Replaces a 250W metal halide fixture

Ideal For: Parking Lots • Service Drives • Loading Zones • Building Perimeters • Commercial Campuses • Municipal Sites

UL Listed for wet locations. IP66 rated for dust and water ingress. Cold-start rated to -40°F with a maximum ambient of 104°F. 3G vibration rating per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 5468/7517/10172 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 3000K, providing soft white light that maintains warmth while delivering clear, comfortable illumination.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
What is the CRI and how does it affect light quality?
This product has a CRI of 82, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
