Product Description

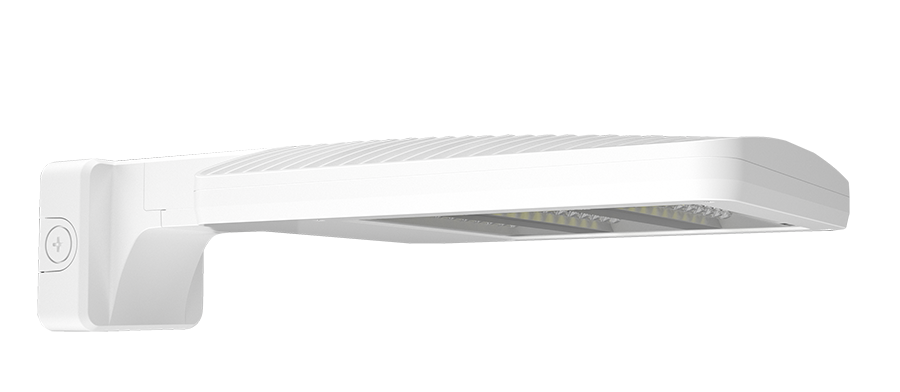

This Small ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled light across parking areas, service drives, and loading zones without requiring a pole. Field-adjustable output means one fixture covers 40W, 60W, or 80W applications, so the same unit can be dialed in on site instead of ordering three separate wattages.
The Type III optic projects light outward from the fixture's side, filling the area with a wide, even pool that suits parking lots, roadways, and general site lighting. At the default 80W setting, the fixture delivers 10,433 lumens; stepping down to 60W yields 7,710 lumens, and 40W yields 5,608 lumens, selectable on the fixture with a rotary switch. Color temperature is 3000K warm white at 82 CRI, powered by a 0–10V dimmable driver that runs on 120–277V and dims down to 10%. The 3000K version is Dark Sky Approved and meets LUNA 5.1 requirements, with a full-cutoff design emitting no light above 90° for site plans that need to limit sky-glow and light trespass.
Features
-
Field-Adjustable Wattage: 40W, 60W, or 80W selectable on the fixture (80W factory default)
-
Light Output: 5,608 / 7,710 / 10,433 lumens at 40W / 60W / 80W
-
Color Temperature: 3000K warm white, 82 CRI
-
Distribution: Type III optic for broad, controlled coverage
-
Equivalent To: 250W metal halide at the 80W setting
-
Dimming: 0–10V dimmable to 10%, driver included
-
Voltage: 120–277V input, 50/60 Hz
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Housing: Die-cast aluminum with high-temperature silicone gaskets and an aluminum reflector with white polycarbonate
-
Finish: White, formulated for long-lasting outdoor color retention
-
Mounting: Direct wall or vertical-surface mount
-
Rated Life: 100,000 hours (L70)
-
Ambient Temperature: Cold-start to −40°F; max ambient 104°F at full power
Ideal For: Building Walls • Loading Docks • Service Drives • Parking Areas • Storage Yards • Wall Pack Replacement
UL Listed for wet locations. IP66 rated. Cold-start rated to −40°F. 3G ANSI C136.31 vibration rating. Max ambient 104°F. Dark Sky Approved and LUNA 5.1 qualified.
