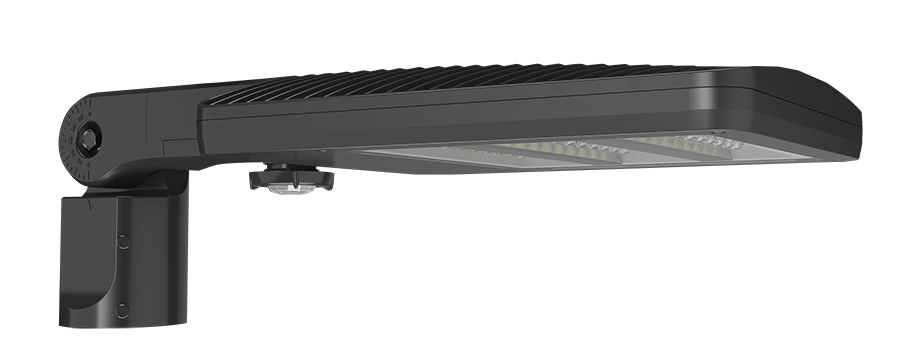

RAB ALED Field Adjustable Area Light 80W/60W/40W Type III 3000K Slipfitter Mount Wattstopper Sensor 20 Foot Lens Bronze (ALEDS3TSFY/WS2)

RAB ALED Field Adjustable Area Light 80W/60W/40W Type III 3000K Slipfitter Mount Wattstopper Sensor 20 Foot Lens Bronze (ALEDS3TSFY/WS2)

SKU ALEDS3TSFY/WS2
by RAB
$841.00 - $841.00
$841.00
Backorder: Usually Ships in 4-7 Days
Product Description

This Small ALED T3 area light slips onto a 2-3/8 inch tenon and locks in with stainless steel hardware, then tilts in 5 degree increments so an installer can aim the Type III beam exactly where a parking area, drive lane, or outdoor service yard needs the light.

Wattage is selectable on the fixture between 40, 60, and 80 watts, so one SKU covers three photometric levels in the field — pick 80 watts for a direct 250-watt metal halide replacement, drop to 60 or 40 watts where the site does not need the full output, and the 3000K warm white output stays consistent across all three steps. The die-cast aluminum housing comes finished in bronze and, at 3000K, this SKU is Dark Sky Approved and carries a LUNA 5.1 listing for night-sky-friendly outdoor lighting.

Features

  • Field-Adjustable Wattage: 40W, 60W, or 80W selectable on the fixture (80W factory default)
  • Lumen Output: 5,608 lumens at 40W, 7,710 lumens at 60W, 10,433 lumens at 80W
  • Color Temperature: 3000K warm white
  • Color Rendering: 82 CRI
  • Wattage Equivalency: Replaces a 250-watt metal halide
  • Efficacy: 140.9 to 130.7 lumens per watt across the three wattage steps
  • Distribution: Type III, projecting light outward from the pole to fill parking rows and drive lanes
  • Rated Life: 100,000 hours to L70
  • Dimming: 0-10V dimming down to 10%
  • Input Voltage: 120-277V universal
  • BUG Rating: B1 U0 G2 at 80W and 60W, B1 U0 G1 at 40W
  • Surge Protection: 10kV line-to-line, 6kV line-to-ground
  • Housing: Die-cast aluminum in a bronze finish
  • Mounting: 2-3/8 inch slipfitter with stainless steel hardware; 5 degree tilt adjustment
  • Integrated Photocell: WattStopper 20-foot lens photocell wired in for automatic dusk-to-dawn operation out of the box
  • Dark Sky: Dark Sky Approved and LUNA 5.1 listed for outdoor night-sky-friendly installations

Ideal For: Parking Lots • Roadways • Auto Dealerships • Commercial Campuses • Retrofits of Existing Tenon Poles

UL Listed for wet locations, IP66 rated for dust and water ingress, cold-start rated to –40°F, maximum ambient 104°F, and 3G vibration rated per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 5608/7710/10433 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 3000K, providing soft white light that maintains warmth while delivering clear, comfortable illumination.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
What is the CRI and how does it affect light quality?
This product has a CRI of 82, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
