RAB ALED 40W-50W-66W Type III 5000K Pole Mount Bronze (ALEDS3T)

SKU ALEDS3T
by RAB
Original price $680.00 - Original price $680.00
Original price
$680.00
Backorder: Usually Ships in 4-7 Days
Product Description

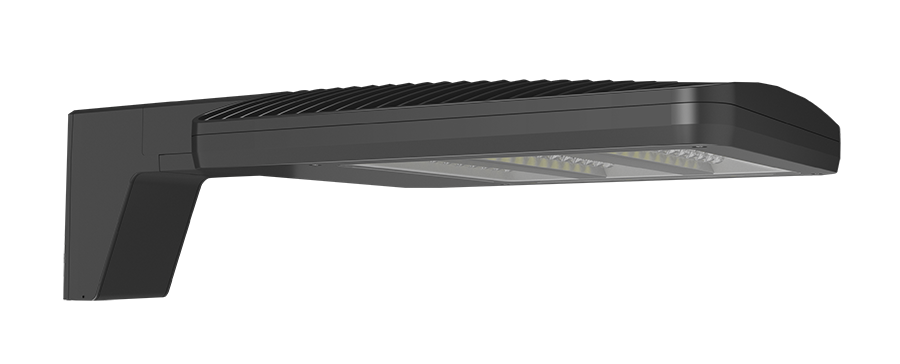

This Small ALED area light mounts to a pole or bracket on a universal slide-and-lock arm, spreading even, glare-controlled illumination across parking lots, campus walkways, and perimeter drives. Field-adjustable wattage lets the installer set the fixture to 40W, 60W, or 80W on site, delivering up to 10,742 lumens in 5000K cool white with a Type III distribution—a wide, forward-throw beam for parking lots, roadways, and larger open areas.

Features

  • Optics: Type III LED distribution, A wide, forward-throw beam for parking lots, roadways, and larger open areas
  • Field-Adjustable Wattage: 40W / 60W / 80W selectable on the fixture, factory default 80W
  • Lumen Output: 5,719 lm at 40W up to 10,742 lm at 80W
  • Color Temperature: 5000K cool white, 82 CRI
  • 250W Metal Halide Equivalent: Direct replacement for legacy HID area lights
  • Input Voltage: 120–277V universal, 50/60 Hz
  • Dimming: 0–10V standard, dims to 10%
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Mounting: Universal slide-and-lock arm, fits 1" to 3" hole patterns, round-pole adapter included
  • Housing: Die-cast aluminum with high-durability powder finish
  • Cold Start: Rated to −40°F (−40°C)
  • Vibration Rating: 3G per ANSI C136.31
  • Finish: Bronze
  • Rated Life: 100,000 hours (L70)

Ideal For: Parking Lots • Auto Dealerships • Retail Centers • Municipal Facilities • Industrial Yards

UL Listed for wet locations. IP66 rated for dust and water ingress. Rated for cold start to −40°F and operation up to 104°F ambient. Meets 3G ANSI C136.31 vibration requirements.

Frequently Asked Questions
How bright is this product?
This product offers 5719/7951/10742 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 82, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
