Product Description

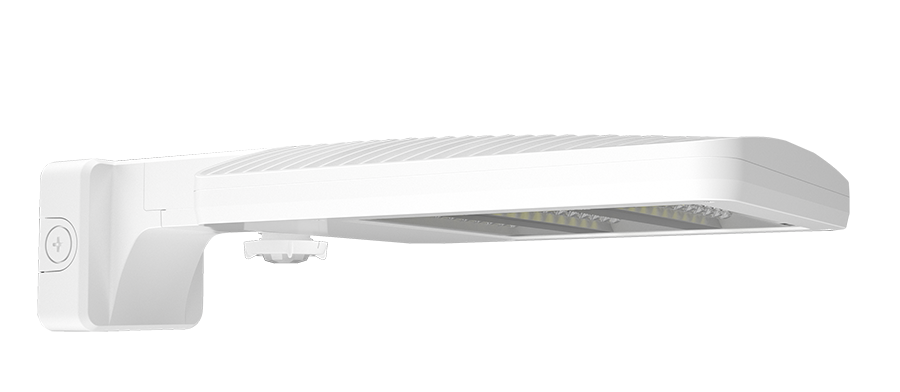

This Small ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled light across parking areas, service drives, and loading zones without requiring a pole. Field-adjustable wattage lets the installer set the fixture to 40W, 60W, or 80W on site, delivering up to 10,181 lumens in 3000K warm white with a Type II distribution—a narrow, roadside-oriented beam for walkways, drives, and long, narrow lots.
An integrated Wattstopper FSP-211 fixture-mounted sensor with a 20-foot lens handles occupancy and daylight harvesting on the fixture itself, dimming down or shutting off during unoccupied hours to cut runtime energy without a separate control system.
The 3000K warm color temperature qualifies this SKU as Dark Sky Approved under IDA guidelines and meets LUNA 5.1 requirements, keeping uplight and short-wavelength content within night-friendly limits for sensitive-sky and coastal applications.
Features
-
Optics: Type II LED distribution, A narrow, roadside-oriented beam for walkways, drives, and long, narrow lots
-
Field-Adjustable Wattage: 40W / 60W / 80W selectable on the fixture, factory default 80W
-
Lumen Output: 5,472 lm at 40W up to 10,181 lm at 80W
-
Color Temperature: 3000K warm white, 82 CRI
-
250W Metal Halide Equivalent: Direct replacement for legacy HID area lights
-
Input Voltage: 120–277V universal, 50/60 Hz
-
Dimming: 0–10V standard, dims to 10%
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Mounting: Wall / vertical surface mount, integrated back plate
-
Integrated Sensor: Wattstopper FSP-211 fixture-mounted occupancy and daylight sensor with 20-foot lens
-
Housing: Die-cast aluminum with high-durability powder finish
-
Cold Start: Rated to −40°F (−40°C)
-
Vibration Rating: 3G per ANSI C136.31
-
Finish: White
-
Rated Life: 100,000 hours (L70)
Ideal For: Parking Structures • Loading Docks • Service Drives • Perimeter Building Walls • Wall Pack Replacements
UL Listed for wet locations. IP66 rated for dust and water ingress. Rated for cold start to −40°F and operation up to 104°F ambient. Meets 3G ANSI C136.31 vibration requirements.
