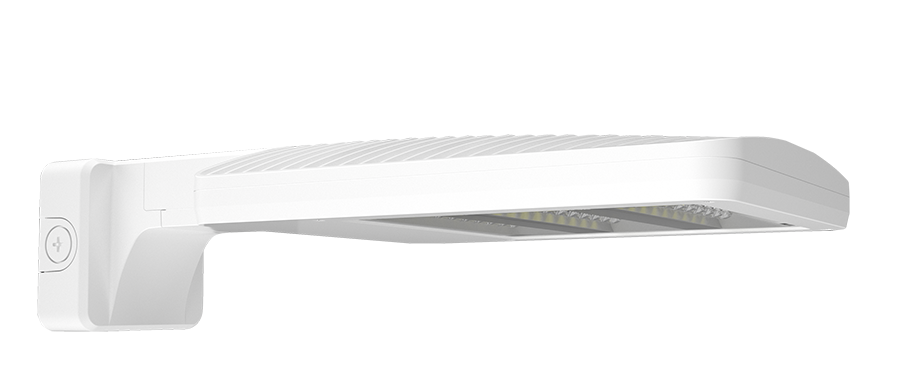

RAB ALED Field Adjustable Area Light 80W/60W/40W Type II 3000K Wall Mount 7-Pin Receptacle White (ALEDS2TWMYW/7PR)

RAB ALED Field Adjustable Area Light 80W/60W/40W Type II 3000K Wall Mount 7-Pin Receptacle White (ALEDS2TWMYW/7PR)

SKU ALEDS2TWMYW/7PR
by RAB
$726.00 - $726.00
$726.00
Backorder: Usually Ships in 4-7 Days
Product Description

This Small ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled light across parking areas, service drives, and loading zones without requiring a pole. Field-adjustable wattage lets the installer set the fixture to 40W, 60W, or 80W on site, delivering up to 10,181 lumens in 3000K warm white with a Type II distribution—a narrow, roadside-oriented beam for walkways, drives, and long, narrow lots.

An ANSI C136.41 7-pin twist-lock receptacle sits on top of the housing, ready to accept a wireless node or photocontrol so the fixture can be tied into a networked lighting control system without rewiring.

The 3000K warm color temperature qualifies this SKU as Dark Sky Approved under IDA guidelines and meets LUNA 5.1 requirements, keeping uplight and short-wavelength content within night-friendly limits for sensitive-sky and coastal applications.

Features

  • Optics: Type II LED distribution, A narrow, roadside-oriented beam for walkways, drives, and long, narrow lots
  • Field-Adjustable Wattage: 40W / 60W / 80W selectable on the fixture, factory default 80W
  • Lumen Output: 5,472 lm at 40W up to 10,181 lm at 80W
  • Color Temperature: 3000K warm white, 82 CRI
  • 250W Metal Halide Equivalent: Direct replacement for legacy HID area lights
  • Input Voltage: 120–277V universal, 50/60 Hz
  • Dimming: 0–10V standard, dims to 10%
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Mounting: Wall / vertical surface mount, integrated back plate
  • Control Receptacle: ANSI C136.41 7-pin twist-lock, wireless-node ready
  • Housing: Die-cast aluminum with high-durability powder finish
  • Cold Start: Rated to −40°F (−40°C)
  • Vibration Rating: 3G per ANSI C136.31
  • Finish: White
  • Rated Life: 100,000 hours (L70)

Ideal For: Parking Structures • Loading Docks • Service Drives • Perimeter Building Walls • Wall Pack Replacements

UL Listed for wet locations. IP66 rated for dust and water ingress. Rated for cold start to −40°F and operation up to 104°F ambient. Meets 3G ANSI C136.31 vibration requirements.

Frequently Asked Questions
How bright is this product?
This product offers 5472/7523/10181 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 3000K, providing soft white light that maintains warmth while delivering clear, comfortable illumination.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
What is the CRI and how does it affect light quality?
This product has a CRI of 82, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
