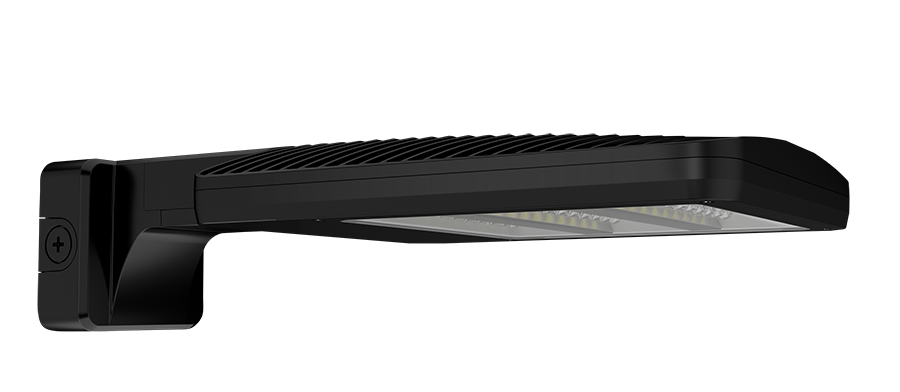

RAB ALED 80W/60W/40W Type II 5000K Wall Mount Black (ALEDS2TWMB)

SKU ALEDS2TWMB
by RAB
Original price $680.00 - Original price $680.00
Original price
$680.00
Backorder: Usually Ships in 4-7 Days
Product Description

This ALED area light mounts directly to a wall or vertical building surface, throwing wide, controlled Type II light across parking areas, service drives, and loading zones without requiring a pole.

Field-adjustable wattage lets you set output on-site to match the job: 40W, 60W, or 80W, chosen with a switch inside the housing (factory default is 80W). That flexibility replaces a 250W metal halide and covers a range of lot sizes and mounting heights without stocking three different fixtures.

Features

  • Type: LED area light, Type II distribution
  • Wattage: Field-adjustable 40W, 60W, or 80W (factory default 80W)
  • Color Temperature: 5000K cool white
  • Lumen Output: 5,812 lm at 40W, 8,081 lm at 60W, 10,917 lm at 80W
  • CRI: 82
  • Rated Life: 100,000 hours (L70)
  • IP Rating: IP66, sealed against dust and water
  • Dimming: 0-10V, standard
  • Housing: Die-cast aluminum
  • Finish: Black
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Cold-Weather Starting: Down to –40°F ambient
  • Vibration Rating: 3G per ANSI C136.31
  • Wattage Equivalency: Replaces 250W metal halide
  • Mounting: Wall mount for direct vertical-surface installation

Ideal For: Parking Lots • Roadways • Walkways • Loading Docks • Service Areas • Wall Pack Replacement

UL Listed for wet locations. Suitable for outdoor mounting from –40°F cold-start ambient. Constructed with high-temperature silicone gaskets and a die-cast aluminum housing finished for long-term color and durability.

Frequently Asked Questions
How bright is this product?
This product offers 5812/8081/10917 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
