Product Description

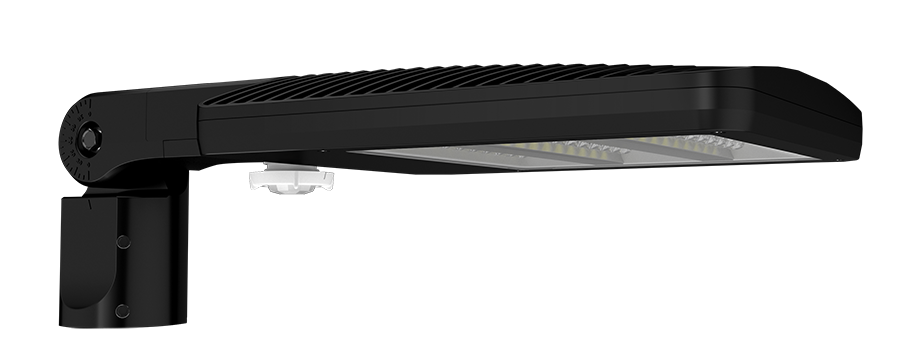

This ALED area light mounts to a 2-3/8 inch round or square pole with its built-in slipfitter, casting wide, controlled Type II light across parking lots, roadways, and open yards from overhead.
An integrated multi-level motion sensor with a 20-foot lens detects movement across the coverage area and steps the light up or down automatically, cutting off-hours energy while keeping the site lit when someone is there.
Field-adjustable wattage sets the fixture to 40W, 60W, or 80W on-site with a switch inside the housing (factory default 80W), replacing a 250W metal halide across a range of lot sizes and mounting heights.
The 3000K warm color temperature is Dark Sky Approved and meets LUNA 5.1 requirements, cutting off all light above 90 degrees so the fixture illuminates the ground below without spilling upward into the night sky.
Features
-
Type: LED area light, Type II distribution
-
Wattage: Field-adjustable 40W, 60W, or 80W (factory default 80W)
-
Color Temperature: 3000K warm white
-
Lumen Output: 5,472 lm at 40W, 7,523 lm at 60W, 10,181 lm at 80W
-
CRI: 82
-
Rated Life: 100,000 hours (L70)
-
IP Rating: IP66, sealed against dust and water
-
Dimming: 0-10V, standard
-
Housing: Die-cast aluminum
-
Finish: Black
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Cold-Weather Starting: Down to –40°F ambient
-
Vibration Rating: 3G per ANSI C136.31
-
Wattage Equivalency: Replaces 250W metal halide
-
Mounting: 2-3/8 inch slipfitter with stainless steel hardware
-
Motion Sensor: Integrated multi-level sensor with 20-foot lens, 180° viewing angle
Ideal For: Parking Lots • Roadways • Walkways • Loading Docks • Building Perimeters • Auto Dealerships
UL Listed for wet locations. Suitable for outdoor mounting from –40°F cold-start ambient. Constructed with high-temperature silicone gaskets and a die-cast aluminum housing finished for long-term color and durability.
