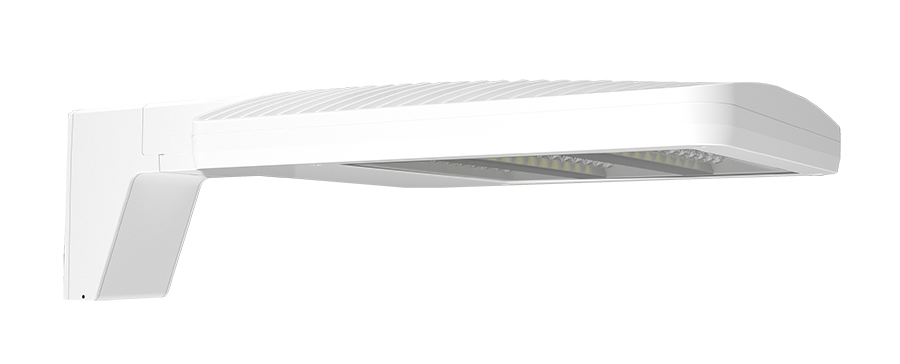

RAB ALED 40W-50W-66W Type II 4000K Pole Mount White (ALEDS2TNW)

RAB ALED 40W-50W-66W Type II 4000K Pole Mount White (ALEDS2TNW)

SKU ALEDS2TNW
by RAB
$680.00 - $680.00
$680.00
Backorder: Usually Ships in 4-7 Days
Product Description

This small ALED T2 area light mounts on a universal arm at the top of a pole in parking lots, service drives, and pedestrian walkways, spreading a Type II distribution along the roadside where light is needed and cutting spill where it isn't. Field-adjustable output at the fixture lets one SKU cover three wattages — 80W, 60W, or 40W — so a contractor can stock fewer models and set the output at install.

The 4000K neutral white output stays warm and comfortable without going yellow, easy on the eyes in walkways and gathering areas where people spend time, and holds 82 CRI, and the white die-cast aluminum housing keeps the fixture visually quiet against light-colored buildings and white poles. 0-10V dimming comes standard, so the fixture pairs with a photocell, timer, or lighting control system for after-hours setback without extra driver options.

Features

  • Wattage: 80W / 60W / 40W field-selectable (factory default 80W)
  • Light Output: 10,637 lumens at 80W, 7,911 lumens at 60W, 5,746 lumens at 40W
  • Color Temperature: 4000K neutral white
  • CRI: 82
  • Distribution: Type II
  • Voltage: 120-277V
  • Dimming: 0-10V, down to 10%
  • Mount: Universal slip-lock arm for hole spacing from 1 inch to 3 inch center to center; round pole adapter plate included
  • Finish: White die-cast aluminum
  • Rating: IP66, UL wet location listed
  • Cold Start: -40°F (-40°C)
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Lifespan: 100,000 hours (L70)
  • Replaces: 250W metal halide

Ideal For: Parking Lots • Service Drives • Loading Zones • Pedestrian Walkways • Campus Grounds

UL listed for wet locations, IP66 rated for dust and water, and rated to start down to -40°F for northern climates.

Frequently Asked Questions
How bright is this product?
This product offers 5746/7911/10637 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 4000K, delivering cool white light with a crisp, clean appearance and clear visual definition.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 82, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
