Product Description

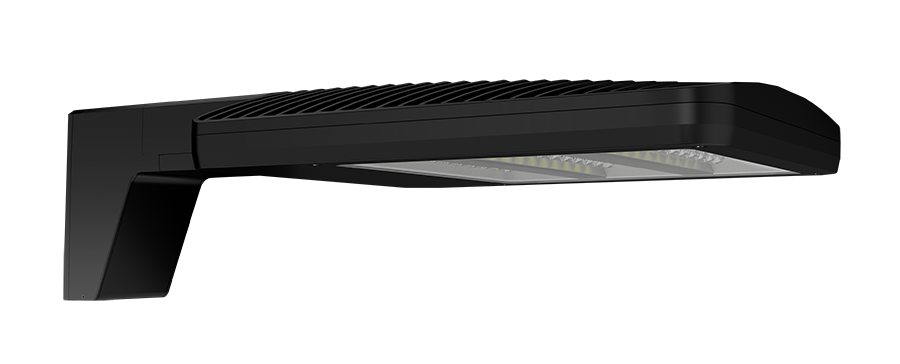

This small ALED T2 area light mounts on a universal arm at the top of a pole in parking lots, service drives, and pedestrian walkways, spreading a Type II distribution along the roadside where light is needed and cutting spill where it isn't. Field-adjustable output at the fixture lets one SKU cover three wattages — 80W, 60W, or 40W — so a contractor can stock fewer models and set the output at install.
The 5000K cool white output looks bright and neutral on asphalt and concrete, holding good color rendering at 82 CRI, and the black die-cast aluminum housing matches modern black poles and low-profile site hardware. 0-10V dimming comes standard, so the fixture pairs with a photocell, timer, or lighting control system for after-hours setback without extra driver options.
Features
-
Wattage: 80W / 60W / 40W field-selectable (factory default 80W)
-
Light Output: 10,917 lumens at 80W, 8,081 lumens at 60W, 5,812 lumens at 40W
-
Color Temperature: 5000K cool white
-
CRI: 82
-
Distribution: Type II
-
Voltage: 120-277V
-
Dimming: 0-10V, down to 10%
-
Mount: Universal slip-lock arm for hole spacing from 1 inch to 3 inch center to center; round pole adapter plate included
-
Finish: Black die-cast aluminum
-
Rating: IP66, UL wet location listed
-
Cold Start: -40°F (-40°C)
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Lifespan: 100,000 hours (L70)
-
Replaces: 250W metal halide
Ideal For: Parking Lots • Service Drives • Loading Zones • Pedestrian Walkways • Campus Grounds
UL listed for wet locations, IP66 rated for dust and water, and rated to start down to -40°F for northern climates.
