Product Description

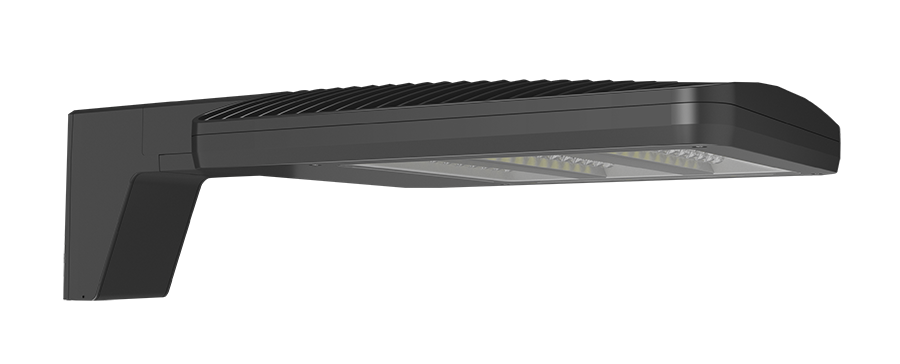

This small ALED area light ships with RAB's universal slide-and-lock arm mount for square or round poles, delivering a Type II distribution designed to light long, narrow areas from the side — wide walkways, entry drives, on-ramps, and bike paths where the fixture sits alongside the target instead of over the center of it.
Three factory-selectable wattage steps let one fixture cover 80W, 60W, or 40W and put out 10917 / 8081 / 5812 lumens respectively, replacing up to 250W of metal halide at 80W and stepping down where less output fits the site. Standard 0-10V dimming carries down to 10% on top of that.
Features
-
Field-Selectable Wattage: 80W / 60W / 40W (factory default 80W)
-
Lumen Output: 10917 / 8081 / 5812 lumens
-
Color Temperature: 5000K cool white, 82 / 82 / 81 CRI
-
Distribution: Type II, side-throw optics for roadways and walkway edges
-
Voltage: 120-277V universal input
-
Dimming: 0-10V standard, dims down to 10%
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Housing: Die-cast aluminum with polycarbonate lens and high-temperature silicone gaskets
-
Finish: Bronze, formulated for long-lasting color
-
Lifespan: 100,000-hour LED rated per IES LM-80 and TM-21
-
Mount: Universal slide-and-lock arm, compatible with 1" to 3" pole hole spacing, round pole adapter plate included
Ideal For: Roadways • Bike Paths • Wide Walkways • Entry Drives • Commercial Perimeters
UL Listed for wet locations, rated IP66 against dust and water, cold-start rated to -40°F with a max ambient of 104°F, and built to the 3G vibration standard per ANSI C136.31.
