RAB ALED 78W-90W-150W At 5000K 480V Wall Mount White (ALEDMATWMW/480)

RAB ALED 78W-90W-150W At 5000K 480V Wall Mount White (ALEDMATWMW/480)

SKU ALEDMATWMW/480
by RAB
$1,050.00 - $1,050.00
$1,050.00
Backorder: Usually Ships in 4-7 Days
Product Description

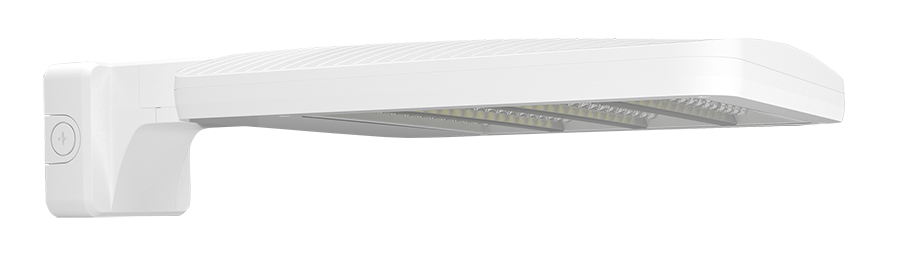

This medium ALED area light mounts directly to a wall or vertical building surface, delivering wide, forward-throw illumination across parking lots, service drives, and building perimeters without requiring a pole or bracket. AT (Automotive Type) optics place a wide beam with an intentional forward hot spot on the front row of inventory or the near edge of a lot, while keeping backspill toward the street under control.

Field-selectable output lets a single fixture cover several site tiers — the driver can be set on 150W, 90W, or 78W at installation, so a specifier can standardize on one SKU across a project and dial each location's output to its position on the site.

Features

  • Light Output: Field-selectable 19,579 lumens at 150W, 12,969 lumens at 90W, or 10,729 lumens at 78W
  • Wattage: Selectable on 150W, 90W, or 78W (factory default 150W)
  • Efficacy: Up to 144.6 lumens per watt
  • Color Temperature: 5000K cool white
  • Color Rendering: 85 CRI
  • Distribution: AT (Automotive Type) — wide throw with a controlled forward hot spot; well suited to car dealership lots and similar front-focus applications
  • Finish: White powder-coat over die-cast aluminum housing, formulated for outdoor color retention
  • Mounting: Wall mount, direct to vertical surface
  • Input Voltage: 480V
  • Dimming: 0-10V dimming driver, dims to 10%
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Housing: Die-cast aluminum with polycarbonate lens and high-temperature silicone gaskets
  • Rated Life: 100,000 hours (L70)
  • Replaces: Up to 400W metal halide
  • Weight: 16.5 lbs

Ideal For: Car Dealerships • Parking Lots • Service Drives • Loading Zones • Building Perimeters • Wall Pack Replacement

UL Listed for wet locations. IP66 rated. Minimum starting temperature -40°F. Maximum ambient 104°F. 3G vibration rating per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 10729/12969/19579 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 85, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
