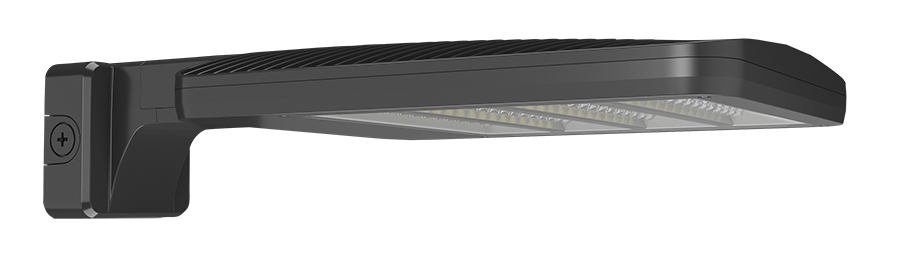

RAB ALED 78W-90W-150W At 4000K 480V Wall Mount Bronze (ALEDMATWMN/480)

RAB ALED 78W-90W-150W At 4000K 480V Wall Mount Bronze (ALEDMATWMN/480)

SKU ALEDMATWMN/480
by RAB
$1,050.00 - $1,050.00
$1,050.00
Backorder: Usually Ships in 4-7 Days
Product Description

This ALED medium-housing area light mounts directly to a wall or vertical building surface, spreading a wide car-dealership distribution across parking areas, service drives, and loading zones without requiring a pole. Field-selectable wattage switches between 150W, 90W, and 78W on the fixture itself, so one fixture covers different mounting heights and lumen targets without swapping units. The 4000K neutral-white output balances color rendering against energy use for extended-hour lighting, and the bronze die-cast aluminum housing meets a 3G ANSI C136.31 vibration rating.

Features

  • Field-Selectable Output: 150W / 90W / 78W, factory default 150W
  • Color Temperature: 4000K neutral white
  • Lumen Output: 20,354 / 13,446 / 11,055 lumens at 150W / 90W / 78W
  • Efficacy: 149.4/148.2/140.2 lumens per watt
  • Color Rendering: 84/84/83 CRI
  • Rated Life: 100,000 hours (L70)
  • Dimming: 0-10V, down to 10%
  • Distribution: Type AT car-dealership optic
  • Legacy Equivalency: Replaces a 400W metal halide fixture
  • Input Voltage: 480V
  • Controls: 0-10V dimming leads standard, no external control receptacle
  • Surge Protection: 10kV line-to-line, 6kV line-to-ground
  • Housing: Die-cast aluminum in bronze
  • Lens: Polycarbonate
  • Mount: Direct wall or vertical-surface mount

Ideal For: Car Dealership Building Frontage • Wall Pack Replacement • Loading Docks • Service Bays • Warehouse Exteriors

UL Wet Location listed, IP66 rated for dust and water. Cold-start rated to -40°F with a maximum ambient of 104°F.

Frequently Asked Questions
How bright is this product?
This product offers 11055/13446/20354 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 4000K, delivering cool white light with a crisp, clean appearance and clear visual definition.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
