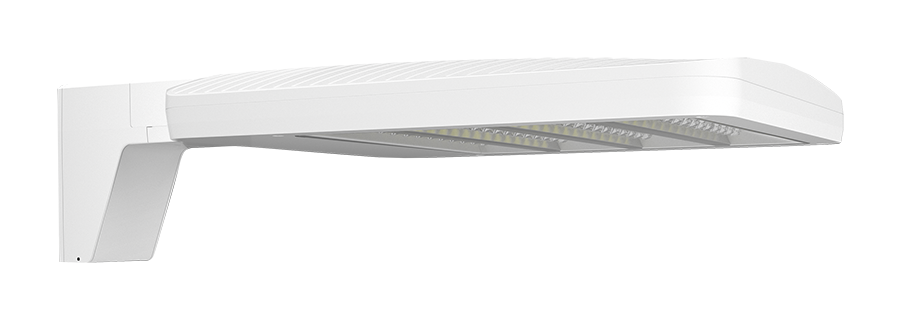

RAB ALED 78W-90W-150W At 5000K 480V Pole Mount White (ALEDMATW/480)

RAB ALED 78W-90W-150W At 5000K 480V Pole Mount White (ALEDMATW/480)

SKU ALEDMATW/480
by RAB
$1,050.00 - $1,050.00
$1,050.00
Backorder: Usually Ships in 4-7 Days
Product Description

This ALED medium-housing area light attaches through a universal arm compatible with square or round poles and hole spacing from 1 to 3 inches center to center, spreading a wide car-dealership distribution across dealer lots, service drives, and parking areas where front-row car visibility matters. A round-pole adapter plate ships standard, and field-selectable wattage switches between 150W, 90W, and 78W on the fixture itself, so one fixture covers multiple pole heights and lumen targets. The 5000K cool-white output sharpens color contrast on signage and vehicle paint, and the white die-cast aluminum housing meets a 3G ANSI C136.31 vibration rating for pole-mounted stability.

Features

  • Field-Selectable Output: 150W / 90W / 78W, factory default 150W
  • Color Temperature: 5000K cool white
  • Lumen Output: 19,579 / 12,969 / 10,729 lumens at 150W / 90W / 78W
  • Efficacy: 144.6/143.7/135.3 lumens per watt
  • Color Rendering: 85 CRI
  • Rated Life: 100,000 hours (L70)
  • Dimming: 0-10V, down to 10%
  • Distribution: Type AT car-dealership optic
  • Legacy Equivalency: Replaces a 400W metal halide fixture
  • Input Voltage: 480V
  • Controls: 0-10V dimming leads standard, no external control receptacle
  • Surge Protection: 10kV line-to-line, 6kV line-to-ground
  • Housing: Die-cast aluminum in white
  • Lens: Polycarbonate
  • Mount: Universal arm for square or round poles, 1" to 3" hole spacing, round-pole adapter plate included

Ideal For: Car Dealership Front Rows • Parking Lots • Fleet Yards • Auto Service Areas • Commercial Perimeters

UL Wet Location listed, IP66 rated for dust and water. Cold-start rated to -40°F with a maximum ambient of 104°F.

Frequently Asked Questions
How bright is this product?
This product offers 10729/12969/19579 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 85, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
