Product Description

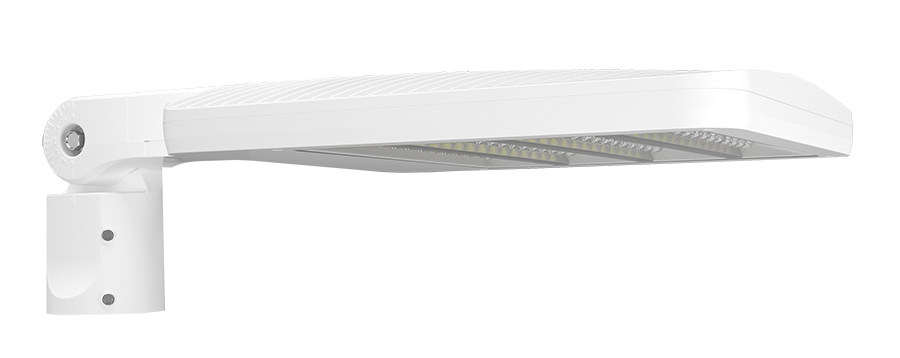

This ALED area light slips onto a 2-3/8 inch pole tenon and casts wide, car-dealership-style optics across parking lots and vehicle display areas, with a controlled backspill pattern that keeps light off the surrounding street. Field-selectable output at 150W, 90W, or 78W paired with cool 5000K color lets one fixture cover a range of lot sizes and mounting heights. An ANSI C136.41 7-pin receptacle on top of the housing accepts photocells and networked wireless control nodes, so the fixture drops into a controls plan without adding external hardware.
The die-cast aluminum housing is finished in white and slips onto the pole with stainless steel hardware. Cool 5000K color casts a bright, daylight-white pool that suits security-focused lots, high-traffic commercial parking, and any application where crisp, high-contrast rendering matters.
Features
-
Output: Field-selectable on 150W, 90W, or 78W (factory default 150W) — delivers 19,579 lumens at 150W, 12,969 at 90W, and 10,729 at 78W
-
Distribution: Type AT car-dealership optics with a wide throw and an intentional hot spot aimed at the front row of a lot, with controlled backspill toward the street
-
Color: 5000K cool, 85 CRI
-
Voltage: 480V input, 0-10V dimmable down to 10%
-
Controls: ANSI C136.41 7-pin receptacle for photocells and wireless control nodes
-
Mount: 2-3/8" slipfitter with stainless steel hardware, 5-degree tilt increments
-
Housing: Die-cast aluminum with a polycarbonate lens and high-temperature silicone gaskets
-
Equivalency: Replaces 400W metal halide with a 100,000-hour rated L70 lifespan
Ideal For: Auto Dealerships • Vehicle Display Lots • Commercial Parking Lots • Service Drives • Fleet and Rental Yards
UL Listed for wet locations, IP66 rated, cold-starts to -40°F, rated to a 104°F maximum ambient at 150W, and meets a 3G ANSI C136.31 vibration rating for pole-top service.
