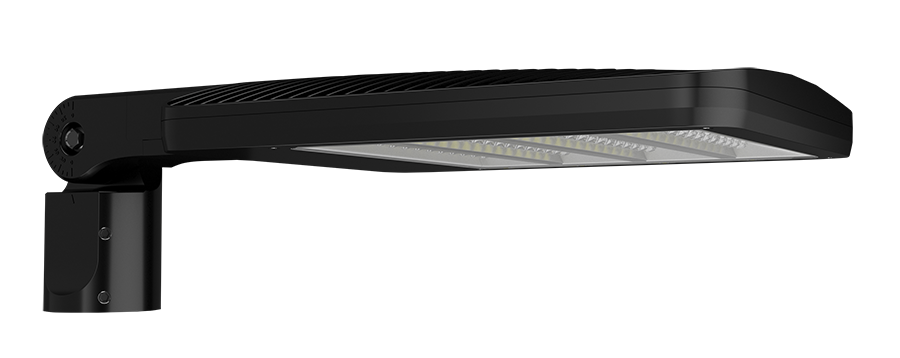

RAB ALED 78W-90W-150W At 5000K 480V With Slipfitter Black (ALEDMATSFB/480)

RAB ALED 78W-90W-150W At 5000K 480V With Slipfitter Black (ALEDMATSFB/480)

SKU ALEDMATSFB/480
by RAB
$1,050.00 - $1,050.00
$1,050.00
Backorder: Usually Ships in 4-7 Days
Product Description

This ALED Medium field-adjustable area light mounts to a 2-3/8 inch slipfitter tenon, delivering RAB's AT (Automotive) distribution — a wide throw with an intentional front-row hot spot built for car dealership lots and other lay-of-the-land parking applications. Output is selectable on 78W, 90W, or 150W, with the factory-default 150W setting replacing a traditional 400W metal halide.

A 5000K cool color temperature reads crisp and daylight-bright, sharpening contrast on vehicles, signage, and lot markings after dark. The driver runs on 480V for high-voltage commercial and industrial services, with 0-10V dimming down to 10 percent for compatible control systems. A black powder-coat finish disappears against dark poles and modern building facades.

Features

  • Wattage & Output: Field-selectable output steps between 78W, 90W, and 150W with efficacies in the 130s to 140s lm/W range, factory default at 150W (equivalent to a 400W metal halide)
  • Color Temperature: 5000K (cool), 84-85 CRI
  • Distribution: AT (Automotive) — wide throw with a front-row hot spot for car dealership optics
  • Input Voltage: 480V, 50/60 Hz (0-10V dimmable to 10 percent)
  • Mounting: 2-3/8 inch slipfitter tenon with stainless steel hardware; rotates in 5 degree increments
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Housing & Lens: Die-cast aluminum housing with polycarbonate lens and high-temperature silicone gaskets
  • Finish: Black powder coat, formulated for long-lasting color and outdoor durability

Ideal For: Car Dealership Lots • Automotive Service Drives • Commercial Parking Areas • Loading Zones • Perimeter Lighting

UL listed for wet locations, IP66-rated for dust and water, and rated to start reliably down to -40°F with a maximum ambient of 104°F. 3G ANSI C136.31 vibration rating for pole and bracket applications. 100,000-hour L70 rated LED service life.

Frequently Asked Questions
How bright is this product?
This product offers 10729/12969/19579 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 85, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
