RAB ALED 78W-90W-150W At 4000K 480V Pole Mount 7-Pin Receptacle Bronze (ALEDMATN/480/7PR)

RAB ALED 78W-90W-150W At 4000K 480V Pole Mount 7-Pin Receptacle Bronze (ALEDMATN/480/7PR)

SKU ALEDMATN/480/7PR
by RAB
$1,097.00 - $1,097.00
$1,097.00
Backorder: Usually Ships in 4-7 Days
Product Description

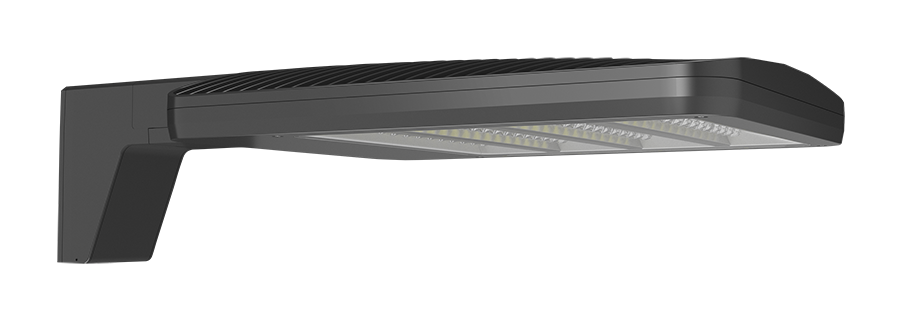

This ALED Medium field-adjustable area light mounts to a pole via a universal arm bracket, delivering RAB's AT (Automotive) distribution — a wide throw with an intentional front-row hot spot built for car dealership lots and other lay-of-the-land parking applications. Output is selectable on 78W, 90W, or 150W, with the factory-default 150W setting replacing a traditional 400W metal halide.

A 4000K neutral color temperature reads bright and awake without tipping cool, holding paint colors on cars and signage true under the light. The driver runs on 480V for high-voltage commercial and industrial services, with 0-10V dimming down to 10 percent for compatible control systems. An ANSI C136.41 7-pin twist-lock receptacle on top accepts wireless control nodes and photocontrols for scheduled or network-based operation. A bronze powder-coat finish blends into wood, brick, and darker architectural palettes.

Features

  • Wattage & Output: Field-selectable output steps between 78W, 90W, and 150W with efficacies in the 130s to 140s lm/W range, factory default at 150W (equivalent to a 400W metal halide)
  • Color Temperature: 4000K (neutral), 84-85 CRI
  • Distribution: AT (Automotive) — wide throw with a front-row hot spot for car dealership optics
  • Input Voltage: 480V, 50/60 Hz (0-10V dimmable to 10 percent)
  • Mounting: Universal arm bracket for 1 inch to 3 inch hole-spacing patterns; round-pole adapter plate included
  • Controls: ANSI C136.41 7-pin twist-lock receptacle, compatible with wireless control nodes and photocontrols
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Housing & Lens: Die-cast aluminum housing with polycarbonate lens and high-temperature silicone gaskets
  • Finish: Bronze powder coat, formulated for long-lasting color and outdoor durability

Ideal For: Car Dealership Lots • Automotive Service Drives • Commercial Parking Areas • Loading Zones • Perimeter Lighting

UL listed for wet locations, IP66-rated for dust and water, and rated to start reliably down to -40°F with a maximum ambient of 104°F. 3G ANSI C136.31 vibration rating for pole and bracket applications. 100,000-hour L70 rated LED service life.

Frequently Asked Questions
How bright is this product?
This product offers 11055/13446/20354 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 4000K, delivering cool white light with a crisp, clean appearance and clear visual definition.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
