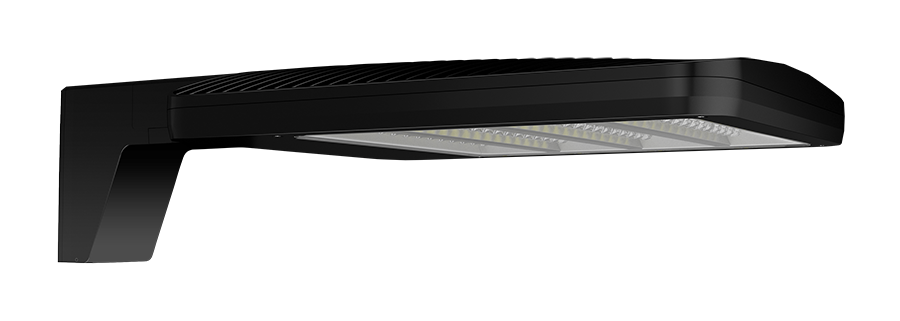

RAB ALED 78W-90W-150W At 5000K 480V Pole Mount 7-Pin Receptacle Black (ALEDMATB/480/7PR)

RAB ALED 78W-90W-150W At 5000K 480V Pole Mount 7-Pin Receptacle Black (ALEDMATB/480/7PR)

SKU ALEDMATB/480/7PR
by RAB
$1,097.00 - $1,097.00
$1,097.00
Backorder: Usually Ships in 4-7 Days
Product Description

This mid-size ALED area light mounts to a pole with its integrated universal arm and uses RAB's car-dealership distribution — wide throw with an intentional hot spot up front — to spotlight vehicles on display while limiting light spill back toward the street. Wired for 480V service, it carries a 7-pin ANSI C136.41 receptacle on top, ready to accept a smart-city node or a photocontrol for autonomous dusk-to-dawn operation.

A single fixture covers three light levels: choose 150W, 90W, or 78W with a switch inside the housing (150W is the factory default). Dial in the wattage during install to match pole spacing, the ambient light budget, or the local energy code — no need to swap fixtures if the plan changes.

Features

  • Wattage: Field-selectable on 150W, 90W, or 78W (150W factory default)
  • Lumens: 19,579 at 150W / 12,969 at 90W / 10,729 at 78W
  • Efficacy: Up to 144.6 lumens per watt
  • Color Temperature: 5000K cool white
  • Color Rendering: 85 CRI
  • Rated Life: 100,000 hours to L70
  • Voltage: 480V, 0-10V dimming down to 10%
  • Controls Receptacle: 7-pin ANSI C136.41 receptacle for smart-city nodes or photocontrols (sold separately)
  • Ingress Protection: IP66, sealed against dust and water
  • Housing: Die-cast aluminum with polycarbonate lens
  • Finish: Black durable powder coat
  • Metal Halide Equivalent: Replaces 400W metal halide
  • Mounting: Universal arm compatible with hole spacing from 1" to 3" center-to-center; round-pole adapter included

Ideal For: Car Dealerships • Auto Showrooms • Fleet Lots • RV Sales Lots • Powersports Dealerships

UL Listed for wet locations. IP66 sealed. Cold-start rated to -40°F, maximum ambient 104°F, 3G vibration rating per ANSI C136.31.

Frequently Asked Questions
How bright is this product?
This product offers 10729/12969/19579 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 85, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
