Product Description

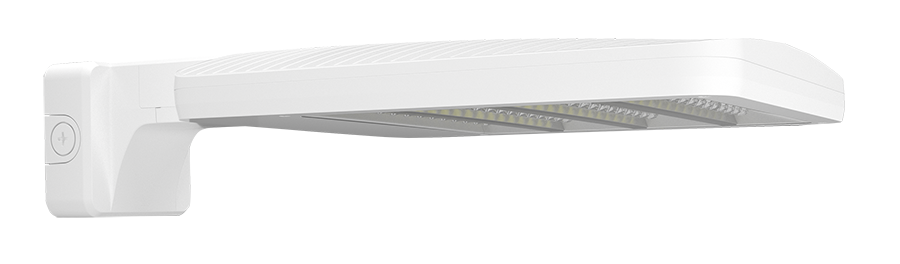

This medium ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled light across parking areas, service drives, and loading zones without requiring a pole.
The neutral 4000K output stays close to daylight color, keeping surfaces and vehicle paint reading naturally under after-hours security cameras. The white finish blends with light-colored EIFS, painted concrete, and stucco facades, keeping the fixture visually quiet during the day.
The 480V driver drops in-line on high-voltage industrial and campus branch circuits without a step-down transformer, and field-adjustable output lets a single fixture cover three lighting targets: 150 watts for full parking coverage, 90 watts for shoulder-hour trim, or 78 watts for perimeter service duty. At the factory-default 150-watt setting the fixture delivers 21,343 lumens in a Type V distribution that spreads a wide, uniform 360° pattern across the site, replacing a 400-watt metal halide head at a fraction of the operating cost.
An ANSI C136.41 7-pin receptacle on top accepts wireless control nodes and networked photocontrols for smart-city or campus-wide dimming and scheduling, and onboard 0-10V dimming brings output down to 10% when paired with a separate DC dimming circuit.
Features
-
Housing: Medium die-cast aluminum with polycarbonate lens and high-temperature silicone gaskets
-
Wattage: Field-adjustable in three steps — 150W, 90W, or 78W (factory default 150W)
-
Delivered Lumens: 21,343 at 150W, 14,099 at 90W, 11,592 at 78W
-
Efficacy: Up to 156.4 lumens per watt
-
Color Temperature: 4000K (neutral), 83 CRI, 7-step MacAdam Ellipse binning for fixture-to-fixture color consistency
-
Distribution: Type V, wide 360° pattern for parking lots, corporate parks, and open outdoor areas
-
Input Voltage: 480V
-
Controls: ANSI C136.41 7-pin receptacle for wireless control nodes, plus 0-10V dimming down to 10% with a separate DC dimming circuit
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Wattage Equivalency: Replaces a 400W metal halide fixture
-
Finish: White, high-durability outdoor coating
-
Rated Life: 100,000-hour LED lifespan (L70)
-
Mounting: Direct wall or vertical-surface mount
Ideal For: Parking Areas • Service Drives • Loading Zones • Wall Pack Replacement • Building Perimeters
UL Listed for wet locations and rated IP66 for dust and water ingress. Cold-start rated down to -40°F and operates in ambient temperatures up to 104°F. 3G vibration rated per ANSI C136.31.
