Product Description

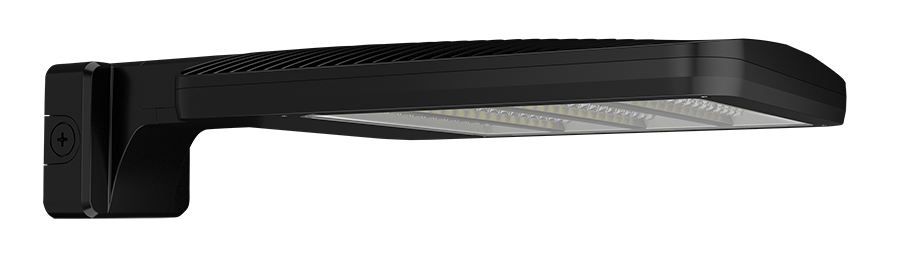

This medium ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled light across parking areas, service drives, and loading zones without requiring a pole. The die-cast aluminum housing and Type V distribution give it the reach of a pole-mounted head from the side of a building, cutting the trenching, concrete, and pole hardware out of the install.
Field-adjustable output lets crews dial the fixture to 78, 90, or 150 watts on site, matching mounting height and target illuminance without swapping in a different housing. At the 150-watt setting it delivers 21,609 lumens, dropping to 14,203 at 90 watts and 11,825 at 78 watts, all replacing a 400-watt metal halide wall pack at a fraction of the draw.
Features
-
Field-Adjustable Output: Three discrete steps — 78W (11,825 lumens), 90W (14,203 lumens), or 150W (21,609 lumens), with 150W as the factory default
-
Distribution: Type V wide 360° pattern for uniform coverage across large open areas
-
Color Temperature: 4000K neutral white
-
Color Accuracy: 84 CRI
-
Rated Life: 100,000 hours to L70
-
Input Voltage: 120-277V
-
Dimming: 0-10V dimming down to 10%, separate dimming circuit required
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Wattage Equivalency: Replaces a 400W metal halide fixture
-
Housing: Die-cast aluminum with polycarbonate lens and aluminum reflector
-
Mounting: Direct wall or vertical surface mount
-
Finish: Black durable powder coat formulated for long-lasting color
-
Ingress Protection: IP66 rated against dust and water
Ideal For: Parking Areas • Service Drives • Loading Zones • Building Perimeters • Warehouse Exteriors • Wall Pack Replacement
UL Listed for wet locations, IP66 sealed against dust and water, cold-starts down to -40°F, operates in ambients up to 104°F, and carries a 3G vibration rating per ANSI C136.31.
