Product Description

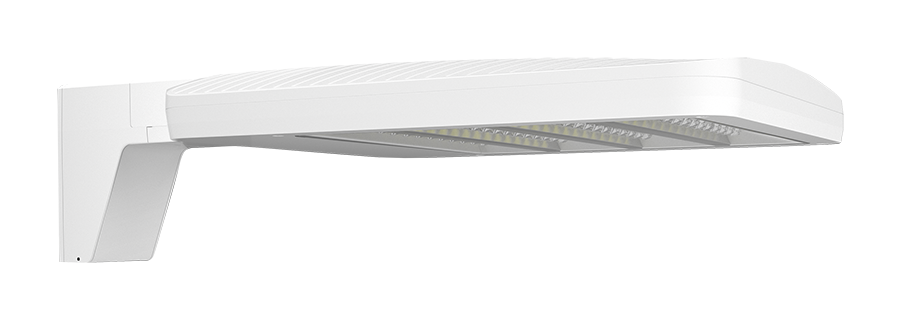

This medium ALED area light attaches to a horizontal mounting arm at the top of a square or round pole, projecting a broad Type V beam across parking lots, corporate campuses, and retail lots below. The universal arm fits hole spacing patterns from 1" to 3" center to center, and a round pole adapter plate ships in the box so a single fixture handles either pole style without extra hardware.
Field-adjustable output lets crews dial the fixture to 78, 90, or 150 watts on site, matching pole spacing and target illuminance without swapping in a different housing. At the 150-watt setting it delivers 21,070 lumens, dropping to 13,957 at 90 watts and 11,546 at 78 watts, all replacing a 400-watt metal halide head at a fraction of the draw.
Features
-
Field-Adjustable Output: Three discrete steps — 78W (11,546 lumens), 90W (13,957 lumens), or 150W (21,070 lumens), with 150W as the factory default
-
Distribution: Type V wide 360° pattern for uniform coverage across large open areas
-
Color Temperature: 5000K cool white
-
Color Accuracy: 84 CRI
-
Rated Life: 100,000 hours to L70
-
Input Voltage: 480V
-
Dimming: 0-10V dimming down to 10%, separate dimming circuit required
-
Controls Receptacle: ANSI C136.41 7-pin receptacle for smart-city nodes and wireless control systems
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Wattage Equivalency: Replaces a 400W metal halide fixture
-
Housing: Die-cast aluminum with polycarbonate lens and aluminum reflector
-
Mounting: Universal arm for hole spacing patterns from 1" to 3" center to center; round pole adapter plate included
-
Finish: White durable powder coat formulated for long-lasting color
-
Ingress Protection: IP66 rated against dust and water
Ideal For: Parking Lots • Corporate Campuses • Retail Lots • Service Drives • Loading Zones • Municipal Sites
UL Listed for wet locations, IP66 sealed against dust and water, cold-starts down to -40°F, operates in ambients up to 104°F, and carries a 3G vibration rating per ANSI C136.31.
