Product Description

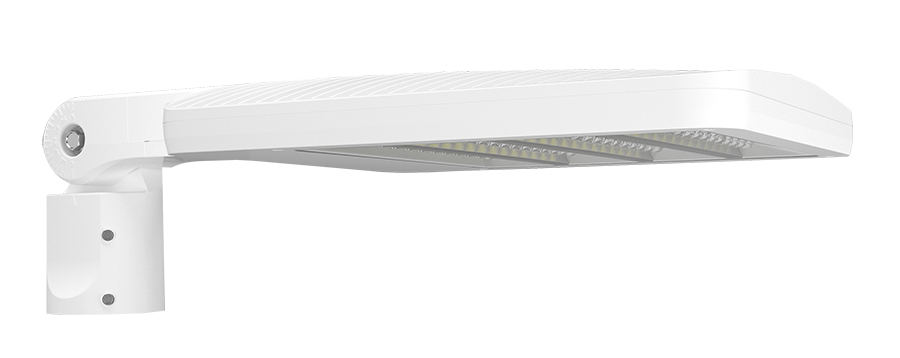

This medium ALED area light slides onto a 2-3/8 inch slipfitter tenon and locks in with stainless steel hardware, casting a wide 360 degree Type V pattern that blankets parking lots, corporate campuses, and retail sites without leaving pools of shadow between poles.
The 5000K cool white output reads crisp and daylight-like, sharpening contrast on signage, license plates, and pedestrian activity across the lot. The white housing keeps the fixture visually quiet against pale poles and light-colored building facades. Multi-tap 120-277V input matches whatever secondary is already at the pole, so an electrician can wire the same fixture on a 120V, 208V, 240V, or 277V circuit without ordering a different SKU.
Features
-
Field-Selectable Wattage: Choose 150W, 90W, or 78W on the driver at install time (factory default 150W), so one SKU covers three light levels across the site.
-
Lumen Output: 21,067 lumens at 150W, 13,850 lumens at 90W, 11,639 lumens at 78W, using just 150, 90, or 78 watts respectively.
-
Color Temperature: 5000K cool white, replacing a 400W metal halide fixture with far less energy and no warm-up time.
-
Color Rendering: 84 CRI for accurate color on signage, uniforms, and vehicle finishes.
-
Distribution: Type V symmetric pattern spreads light evenly in every direction, ideal for pole-mount coverage of wide-open parking areas.
-
Voltage: 120-277V multi-tap input, 50/60 Hz.
-
0-10V Dimming: Wired for a separate 0-10V DC dimming circuit and dims down to 10 percent output.
-
Surge Protection: 10kV line-to-line and 6kV line-to-ground protect the driver against nearby lightning strikes and utility transients.
-
Mount: 2-3/8 inch slipfitter with stainless steel hardware; rotates in 5 degree increments for on-site aiming.
-
Housing: Die-cast aluminum with a high-durability white finish and high-temperature silicone gaskets sealing every joint.
-
Lens: Polycarbonate with an aluminum reflector and white polycarbonate secondary optics for consistent uniformity.
-
Rated Life: 100,000 hours L70, projected from IES LM-80 test data using TM-21 calculations.
Ideal For: Parking Lots • Corporate Campuses • Retail Centers • Auto Dealerships • Loading Zones
UL Listed for wet locations, IP66 sealed against dust and driving rain, rated for cold starts down to -40°F and ambient temperatures up to 104°F at full 150W output, and tested to 3G vibration per ANSI C136.31 for pole-mount applications.
