Product Description

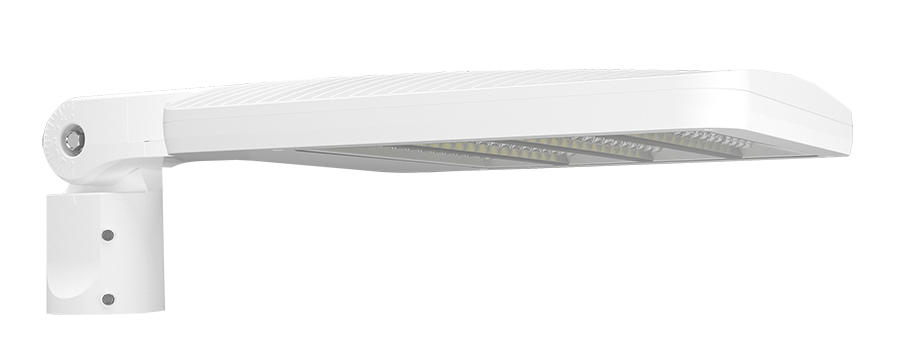

This medium ALED area light slides onto a 2-3/8 inch slipfitter tenon and locks in with stainless steel hardware, casting a wide 360 degree Type V pattern that blankets parking lots, corporate campuses, and retail sites without leaving pools of shadow between poles.
The 4000K neutral white output balances color rendering with visual clarity for staff and shoppers moving through the lot after hours. The white housing keeps the fixture visually quiet against pale poles and light-colored building facades. Native 480V input feeds long pole runs directly on large commercial and industrial sites, cutting the voltage-drop losses that come with stepping 480V down to 277V at each fixture. An ANSI C136.41 seven-pin receptacle on top of the housing accepts a networked control node from any major smart-city or wireless-controls system, so a facilities team can add dimming, scheduling, or remote diagnostics later without pulling the fixture down.
Features
-
Field-Selectable Wattage: Choose 150W, 90W, or 78W on the driver at install time (factory default 150W), so one SKU covers three light levels across the site.
-
Lumen Output: 21,343 lumens at 150W, 14,099 lumens at 90W, 11,592 lumens at 78W, using just 150, 90, or 78 watts respectively.
-
Color Temperature: 4000K neutral white, replacing a 400W metal halide fixture with far less energy and no warm-up time.
-
Color Rendering: 83 CRI for accurate color on signage, uniforms, and vehicle finishes.
-
Distribution: Type V symmetric pattern spreads light evenly in every direction, ideal for pole-mount coverage of wide-open parking areas.
-
Voltage: 480V input, 50/60 Hz.
-
0-10V Dimming: Wired for a separate 0-10V DC dimming circuit and dims down to 10 percent output.
-
Surge Protection: 10kV line-to-line and 6kV line-to-ground protect the driver against nearby lightning strikes and utility transients.
-
Control Receptacle: ANSI C136.41 seven-pin receptacle on top, ready to accept a wireless or networked control node.
-
Mount: 2-3/8 inch slipfitter with stainless steel hardware; rotates in 5 degree increments for on-site aiming.
-
Housing: Die-cast aluminum with a high-durability white finish and high-temperature silicone gaskets sealing every joint.
-
Lens: Polycarbonate with an aluminum reflector and white polycarbonate secondary optics for consistent uniformity.
-
Rated Life: 100,000 hours L70, projected from IES LM-80 test data using TM-21 calculations.
Ideal For: Parking Lots • Corporate Campuses • Retail Centers • Auto Dealerships • Loading Zones
UL Listed for wet locations, IP66 sealed against dust and driving rain, rated for cold starts down to -40°F and ambient temperatures up to 104°F at full 150W output, and tested to 3G vibration per ANSI C136.31 for pole-mount applications.
