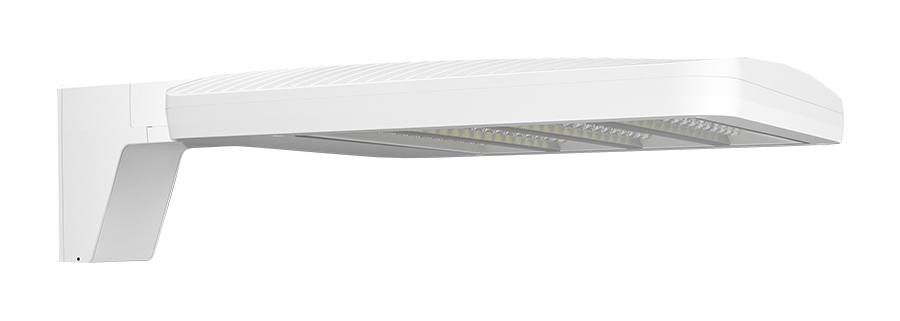

RAB ALED 78W-90W-150W Type V 4000K 480V Pole Mount 7-Pin Receptacle White (ALEDM5TNW/480/7PR)

RAB ALED 78W-90W-150W Type V 4000K 480V Pole Mount 7-Pin Receptacle White (ALEDM5TNW/480/7PR)

SKU ALEDM5TNW/480/7PR
by RAB
$1,097.00 - $1,097.00
$1,097.00
Backorder: Usually Ships in 4-7 Days
Product Description

This medium ALED area light mounts on a universal adjustable arm that fits round poles or square poles with hole spacing from 1 inch to 3 inches on center, throwing broad, uniform Type V light across parking areas, corporate campuses, and retail sites without hot spots or dark corners.

Field-selectable output lets one fixture cover three lighting jobs: switch it to 78 watts for lower-density coverage, 90 watts for mid-density areas, or leave it at the factory-default 150 watts for full-output performance replacing a 400-watt metal halide. The 4000K neutral color balances warmth and daylight for accurate identification of vehicles, signage, and pedestrians at night. The white finish suits lighter architectural surroundings and modern site design. A 480V input supports high-voltage commercial and industrial site distribution, cutting conductor sizing on long pole runs. An ANSI C136.41 7-pin receptacle at the top of the housing accepts networked lighting controls and wireless dimming nodes for future integration with a control system.

Features

  • Field-Selectable Output: 78W / 90W / 150W in three discrete steps, factory default 150W
  • Lumen Output: 11,825 lumens at 78W, 14,203 lumens at 90W, 21,609 lumens at 150W
  • Efficacy: Up to 154.4 lumens per watt
  • Color Temperature: 4000K neutral
  • Color Rendering: 84 CRI
  • Beam Distribution: Type V, 360-degree wide uniform pattern
  • HID Equivalent: Replaces 400W metal halide
  • Voltage: 480V input
  • Dimming: 0-10V dimmable down to 10 percent
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Rated Life: 100,000 hours L70
  • Housing: Die-cast aluminum with polycarbonate lens
  • Finish: White, formulated for high durability and long-lasting color
  • Mounting: Universal adjustable arm for round or square poles, 1-inch to 3-inch hole spacing on center; round pole adapter plate included
  • BUG Rating: B4-U0-G2 at all wattage settings
  • Vibration Rating: 3G per ANSI C136.31
  • Weight: 16.5 pounds
  • 7-Pin Receptacle: ANSI C136.41 receptacle compatible with wireless control systems

Ideal For: Parking Lots • Corporate Campuses • Retail Centers • Loading Areas • Service Drives

UL Listed for wet locations. IP66 rated for dust and water ingress. Cold weather starting down to -40°F.

Frequently Asked Questions
How bright is this product?
This product offers 11592/14099/21343 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 4000K, delivering cool white light with a crisp, clean appearance and clear visual definition.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
