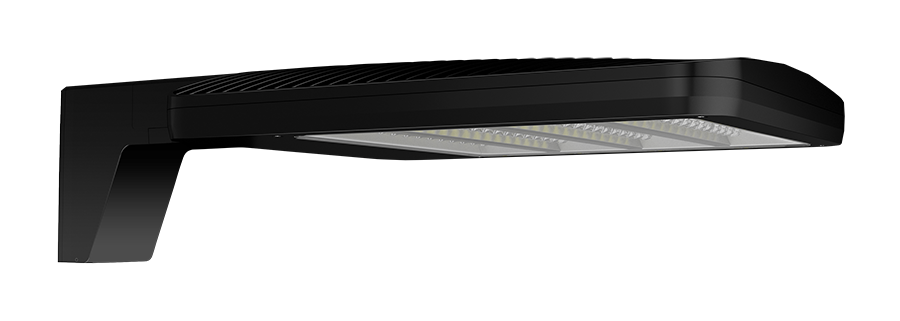

RAB ALED 78W-90W-150W Type V 5000K 480V Pole Mount Black (ALEDM5TB/480)

This medium-housing ALED area light mounts to a square or round pole via a universal arm bracket and casts a wide 360° Type V beam across parking lots, corporate campuses, and retail approaches in a black die-cast aluminum housing. Field-adjustable output steps between 150W, 90W, and 78W right on the housing before install, so one fixture covers three light levels without re-ordering, and the cool 5000K color temperature stays consistent across all three steps.

The 480V driver replaces the standard 120–277V multi-tap for high-voltage sites wired at 480V.

Features

• Field-Adjustable Wattage: 150W, 90W, or 78W selectable on the housing (150W factory default)
• Delivered Lumens: 21,070 lm at 150W, 13,957 lm at 90W, 11,546 lm at 78W
• Efficacy: up to 155.7 lm/W at the low step
• Distribution: Type V wide 360° pattern — uniform coverage for open lots and large paved areas
• Color Temperature: 5000K (cool white) at 84-85 CRI
• Rated Life: 100,000 hours L70 based on IES LM-80 data and TM-21 calculations
• Dimming: 0–10V standard, down to 10% output
• Voltage: 480V-only
• Ingress Protection: IP66 sealed against dust and water
• Housing: die-cast aluminum with polycarbonate lens and high-temperature silicone gaskets
• Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
• Cold-Weather Rating: starts and runs down to –40°F
• Vibration Rating: 3G per ANSI C136.31 for bridge, roadway, and high-vibration pole applications
• Mounting: universal arm bracket with round-pole adapter plate included; slide-and-lock installation
• Metal Halide Replacement: equivalent to 400W metal halide

Ideal For: Parking Lots • Corporate Campuses • Retail Centers • Distribution Yards • Municipal Grounds

UL Listed for wet locations. IP66 rated against dust and water ingress. Cold-weather start down to –40°F.
