Product Description

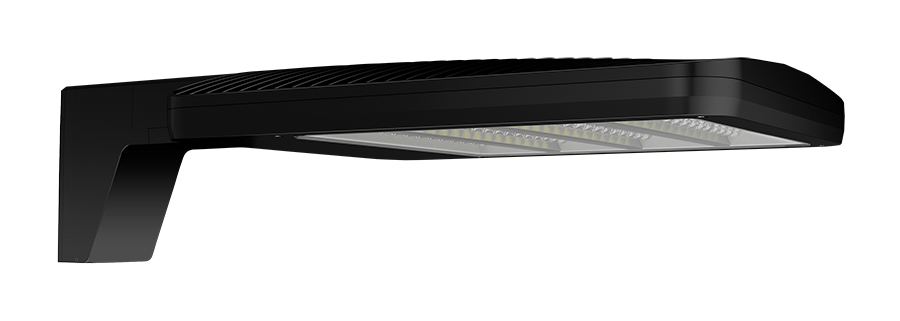

This medium ALED area light bolts to a pole or building bracket with a universal mounting arm, casting Type IV light across parking lots, roadways, and campus perimeters from typical area-light mounting heights. Field-adjustable output steps between 150W, 90W, and 78W right at the fixture, so one SKU covers three photometric targets during layout, punch-list, and post-occupancy trims.
Die-cast aluminum housing, polycarbonate lens, and IP66-rated sealing suit continuous outdoor duty in wet locations. A 3G vibration rating per ANSI C136.31 keeps the fixture stable on pole tops exposed to wind loads and passing traffic. The black finish coordinates with dark pole hardware and modern black-trim architecture. The 0-10V dimming driver runs standalone or ties into a site-level dimming circuit, dimming down to 10 percent for curfew and daylight-harvest schedules.
Features
-
Wattage: 150W / 90W / 78W field-selectable (150W factory default)
-
Light Output: 19,267 / 12,666 / 10,628 lumens at 3000K (Warm)
-
Color Rendering: 82 CRI
-
Distribution: Type IV
-
Input Voltage: 120-277V
-
Dimming: 0-10V, dims to 10 percent
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Cold Start: -40°F (-40°C)
-
Ingress Protection: IP66
-
Housing: Die-cast aluminum
-
Lens: Polycarbonate
-
Finish: Black
-
Mount: Universal mounting arm
-
Rated Life: 100,000 hours (L70)
-
HID Equivalency: 400W metal halide
Ideal For: Parking Lots • Commercial Campuses • Auto Dealerships • Roadways • Municipal Facilities
UL Listed for wet locations, IP66 rated, Dark Sky Approved in 3000K, and LUNA 5.1 listed for night-sky-sensitive projects.
