Product Description

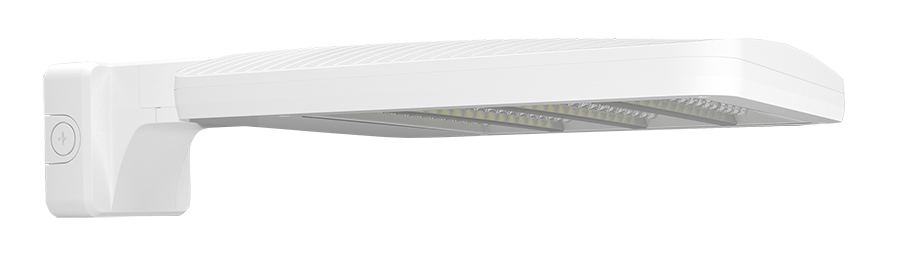

This medium ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled Type IV light across parking areas, service drives, and loading zones without requiring a pole. Field-adjustable output steps between 150W, 90W, and 78W right at the fixture, so one SKU covers three photometric targets during layout, punch-list, and post-occupancy trims.
Die-cast aluminum housing, polycarbonate lens, and IP66-rated sealing suit continuous outdoor duty in wet locations. The Type IV distribution puts a semicircular pattern out in front of the wall, keeping light on the pavement and off the building above. The white finish matches white pole systems and lighter building exteriors, keeping the fixture visually quiet against pale facades. The 0-10V dimming driver runs standalone or ties into a site-level dimming circuit, dimming down to 10 percent for curfew and daylight-harvest schedules. Wired for 480V service to match high-voltage building distribution common on industrial sites and larger commercial campuses.
Features
-
Wattage: 150W / 90W / 78W field-selectable (150W factory default)
-
Light Output: 19,467 / 12,904 / 10,648 lumens at 3000K (Warm)
-
Color Rendering: 82 CRI
-
Distribution: Type IV
-
Input Voltage: 480V
-
Dimming: 0-10V, dims to 10 percent
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Cold Start: -40°F (-40°C)
-
Ingress Protection: IP66
-
Housing: Die-cast aluminum
-
Lens: Polycarbonate
-
Finish: White
-
Mount: Wall
-
Rated Life: 100,000 hours (L70)
-
HID Equivalency: 400W metal halide
Ideal For: Parking Structures • Service Drives • Loading Docks • Commercial Building Perimeters • Wall Pack Replacement
UL Listed for wet locations, IP66 rated, Dark Sky Approved in 3000K, and LUNA 5.1 listed for night-sky-sensitive projects.
