Product Description

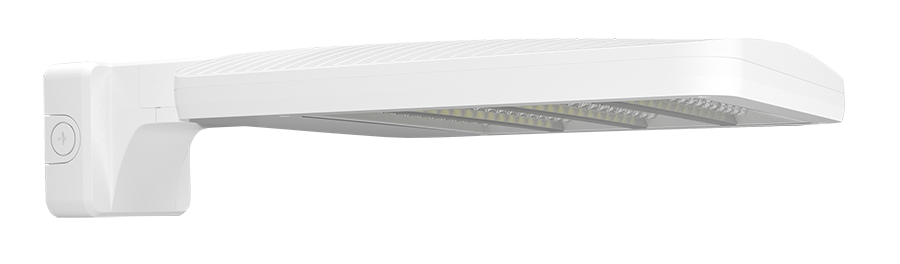

This medium ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled Type IV distribution across parking areas, service drives, and loading zones without requiring a pole. A 4000K neutral white output balances visibility and comfort for personnel moving through the site after dark, and the white finish coordinates with light-colored siding and painted architectural surfaces.
Field-adjustable wattage steps between 78W, 90W, and 150W let an installer set the fixture to the target lumen level at commissioning, delivering up to 19,518 lumens at the top setting for a 400W metal halide replacement. The die-cast aluminum housing carries an IP66 seal and a 3G vibration rating, so it holds up in exposed outdoor duty from -40°F on up. The driver is wired for 480V feeds serving industrial sites and larger commercial developments where the higher circuit voltage is already in place. A 7-pin ANSI receptacle on top of the housing accepts standard photocontrols or externally-mounted control modules for site-wide dimming, scheduling, or utility metering.
Features
-
Fixture Type: ALED Medium wall-mount area light, Type IV distribution
-
Wattage: Field-adjustable 78W / 90W / 150W (factory default 150W)
-
Lumen Output: 10,601 / 12,893 / 19,518 lumens at 78W / 90W / 150W
-
Color Temperature: 4000K neutral white
-
CRI: 84
-
Input Voltage: 480V, 50/60 Hz
-
Dimming: 0-10V standard, down to 10%
-
Wattage Equivalency: Replaces 400W metal halide
-
Housing: Die-cast aluminum, white finish
-
Lens: Polycarbonate
-
IP Rating: IP66, dust-tight and rated for powerful water jets
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Cold-Weather Starting: -40°F (-40°C)
-
Vibration Rating: 3G per ANSI C136.31
-
Rated Lifespan: 100,000 hours (L70)
-
Control Interface: 7-pin ANSI receptacle for external photocontrol or control module
-
Mounting: Wall mount, direct to vertical surface
Ideal For: Building Perimeters • Parking Areas • Service Drives • Loading Zones • Wall Pack Replacement • Commercial Facilities • Warehouses
This fixture is UL Listed and suitable for wet locations, with an IP66 rating against dust and water ingress. The Type IV distribution is optimized for wall-mount perimeter lighting on the sides of buildings and around parking areas.
