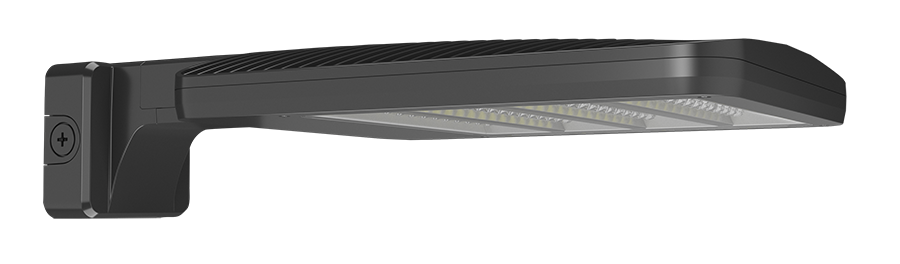

RAB ALED 78W-90W-150W Type IV 5000K 480V Wall Mount Bronze (ALEDM4TWM/480)

RAB ALED 78W-90W-150W Type IV 5000K 480V Wall Mount Bronze (ALEDM4TWM/480)

SKU ALEDM4TWM/480
by RAB
$1,050.00 - $1,050.00
$1,050.00
Backorder: Usually Ships in 4-7 Days
Product Description

This ALED Medium area light mounts directly to a wall or vertical building surface, throwing broad, controlled light across parking areas, service drives, and loading zones without requiring a pole. The Type IV distribution pushes a semicircular pattern forward from the wall, keeping backlight off the building and putting the useful output where trucks, carts, and foot traffic actually move.

Field-adjustable output steps between 150W, 90W, and 78W on the housing, so the same fixture can be dialed to match the light-level requirement of a specific loading bay or perimeter wall. Wired for 480-volt service, it delivers up to 19,073 lumens at the 150W setting — roughly the useful output of a 400W metal halide fixture, using far less energy. The 0-10V dimming driver drops output to 10 percent for off-hours light-level tuning when paired with a compatible dimming circuit.

Features

  • Field-Adjustable Wattage: 150W / 90W / 78W selectable on the housing (factory default 150W)
  • Light Output: Up to 19,073 lumens at the 150W setting; equivalent to a 400W metal halide fixture
  • Color Temperature: 5000K (Cool), 85/85/84 CRI
  • Distribution: Type IV semicircular pattern for wall-mounted perimeter lighting
  • Input Voltage: 480V, 50/60 Hz
  • Dimming: 0-10V dimming driver, dims to 10 percent (requires separate 0-10V control circuit)
  • Mounting: Direct wall mount
  • Housing & Lens: Die-cast aluminum housing, polycarbonate lens, aluminum reflector with white polycarbonate
  • Ingress Protection: IP66 rated for dust and water; high-temperature silicone gaskets
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Cold-Weather Start: Rated down to -40°F (-40°C)
  • Lifespan: 100,000-hour L70 based on IES LM-80 data and TM-21 calculations
  • Finish: Bronze

Ideal For: Parking Areas • Service Drives • Loading Zones • Building Perimeters • Wall Pack Replacement

UL Listed for wet locations; IP66 rated. Requires a separate 0-10V control circuit for dimming. Factory shipped at 150W; wattage step selection is made on the housing at install.

Frequently Asked Questions
How bright is this product?
This product offers 10452/12634/19073 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
