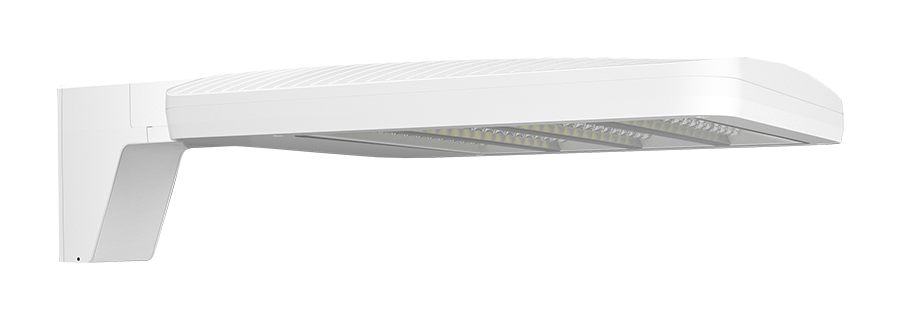

RAB ALED 78W-90W-150W Type IV 5000K 480V Pole Mount White (ALEDM4TW/480)

RAB ALED 78W-90W-150W Type IV 5000K 480V Pole Mount White (ALEDM4TW/480)

SKU ALEDM4TW/480
by RAB
$1,050.00 - $1,050.00
$1,050.00
Backorder: Usually Ships in 4-7 Days
Product Description

Field-adjustable in three wattage steps — 150W, 90W, or 78W selected right on the housing — this ALED Medium area light lets crews standardize on one part number across a project and dial in the exact light level at each pole. The universal mounting arm bolts to square poles with hole spacing anywhere from 1 inch to 3 inches on center, and a round-pole adapter plate ships in the box for retrofits onto existing round poles.

The Type IV distribution suits parking-perimeter and roadway work, sweeping a semicircular pattern out from the pole while keeping backlight in check. Wired for 480-volt service and delivering up to 19,073 lumens at the 150W setting, the fixture replaces roughly a 400W metal halide head while using far less energy. The 0-10V dimming driver drops output to 10 percent for off-hours light-level tuning when connected to a compatible dimming circuit.

Features

  • Field-Adjustable Wattage: 150W / 90W / 78W selectable on the housing (factory default 150W)
  • Light Output: Up to 19,073 lumens at the 150W setting; equivalent to a 400W metal halide fixture
  • Color Temperature: 5000K (Cool), 85/85/84 CRI
  • Distribution: Type IV semicircular pattern for pole-mounted perimeter and roadway lighting
  • Input Voltage: 480V, 50/60 Hz
  • Dimming: 0-10V dimming driver, dims to 10 percent (requires separate 0-10V control circuit)
  • Mounting: Universal mounting arm for 1-inch to 3-inch square-pole hole patterns; round-pole adapter plate included
  • Housing & Lens: Die-cast aluminum housing, polycarbonate lens, aluminum reflector with white polycarbonate
  • Ingress Protection: IP66 rated for dust and water; high-temperature silicone gaskets
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Cold-Weather Start: Rated down to -40°F (-40°C)
  • Lifespan: 100,000-hour L70 based on IES LM-80 data and TM-21 calculations
  • Finish: White

Ideal For: Parking Lots • Warehouse Yards • Commercial Campuses • Retail Perimeters • Service Areas

UL Listed for wet locations; IP66 rated. Requires a separate 0-10V control circuit for dimming. Factory shipped at 150W; wattage step selection is made on the housing at install.

Frequently Asked Questions
How bright is this product?
This product offers 10452/12634/19073 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
