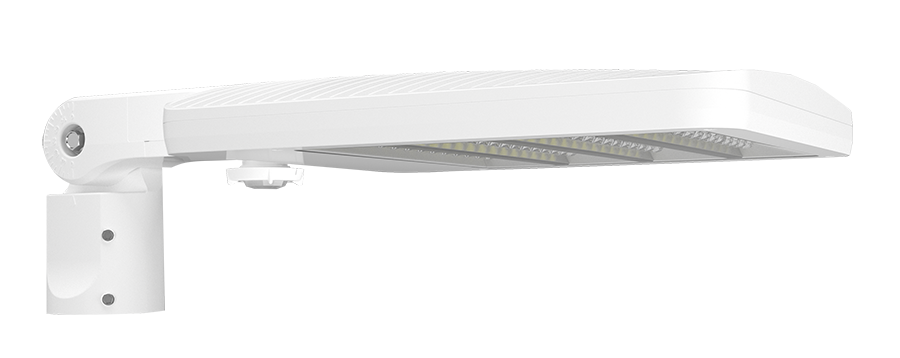

RAB ALED Field Adjustable Area Light 78W/90W/150W Type IV 3000K 480V Slipfitter Mount Wattstopper Sensor 20 Foot Lens White (ALEDM4TSFYW/480/WS2)

RAB ALED Field Adjustable Area Light 78W/90W/150W Type IV 3000K 480V Slipfitter Mount Wattstopper Sensor 20 Foot Lens White (ALEDM4TSFYW/480/WS2)

SKU ALEDM4TSFYW/480/WS2
by RAB
$1,210.00 - $1,210.00
$1,210.00
Backorder: Usually Ships in 4-7 Days
Product Description

This ALED Medium area light slips onto a standard 2-3/8-inch horizontal tenon and throws a Type IV distribution optimized for parking rows, driveway edges, and retail perimeters — a semicircular pattern that pushes light forward and to the sides without spilling behind the pole. The white die-cast aluminum housing carries a polycarbonate lens and holds an IP66 rating for dust and water ingress, UL Listed for wet locations.

Field-adjustable output steps between 150W, 90W, and 78W right on the housing, so one part number covers three light-level tiers without stocking separate SKUs. Wired for a 480-volt service, the fixture delivers up to 19,467 lumens at the 150W setting — roughly the useful output of a 400W metal halide head, using far less energy. An integrated WattStopper motion sensor with a 20-foot lens dims the fixture during quiet hours and brings it back to full output when it detects motion across a 180-degree field of view, cutting off-hours energy while keeping the area lit.

Features

  • Field-Adjustable Wattage: 150W / 90W / 78W selectable on the housing (factory default 150W)
  • Light Output: Up to 19,467 lumens at the 150W setting; equivalent to a 400W metal halide fixture
  • Color Temperature: 3000K (Warm), 82 CRI
  • Distribution: Type IV semicircular pattern for pole-mounted perimeter and roadway lighting
  • Input Voltage: 480V, 50/60 Hz
  • Dimming: 0-10V dimming driver, dims to 10 percent (requires separate 0-10V control circuit)
  • Integrated Controls: WattStopper multi-level motion sensor with 20-foot lens and 180-degree field of view; wireless configuration via handheld tool (WSREM, sold separately)
  • Mounting: 2-3/8 inch slipfitter with stainless steel hardware; rotates in 5-degree tilt increments
  • Housing & Lens: Die-cast aluminum housing, polycarbonate lens, aluminum reflector with white polycarbonate
  • Ingress Protection: IP66 rated for dust and water; high-temperature silicone gaskets
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Cold-Weather Start: Rated down to -40°F (-40°C)
  • Lifespan: 100,000-hour L70 based on IES LM-80 data and TM-21 calculations
  • Finish: White

Ideal For: Parking Lots • Retail Perimeters • Business Complexes • Distribution Yards • Municipal Streets

UL Listed for wet locations; IP66 rated. Requires a separate 0-10V control circuit for dimming. Factory shipped at 150W; wattage step selection is made on the housing at install.

Frequently Asked Questions
How bright is this product?
This product offers 10648/12904/19467 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 3000K, providing soft white light that maintains warmth while delivering clear, comfortable illumination.
What is the CRI and how does it affect light quality?
This product has a CRI of 82, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
