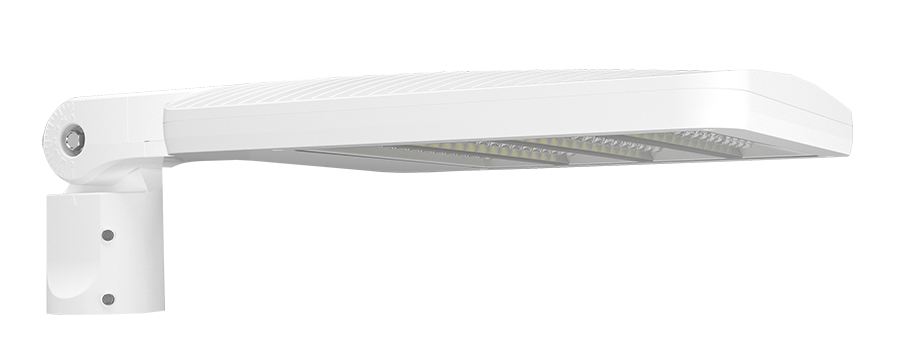

RAB ALED Field Adjustable Area Light 78W/90W/150W Type IV 3000K 480V Slipfitter Mount White (ALEDM4TSFYW/480)

This ALED Medium area light slips onto a standard 2-3/8-inch horizontal tenon and throws a Type IV distribution optimized for parking rows, driveway edges, and retail perimeters — a semicircular pattern that pushes light forward and to the sides without spilling behind the pole. The white die-cast aluminum housing carries a polycarbonate lens and holds an IP66 rating for dust and water ingress, UL Listed for wet locations.

Field-adjustable output steps between 150W, 90W, and 78W right on the housing, so one part number covers three light-level tiers without stocking separate SKUs. Wired for a 480-volt service, the fixture delivers up to 19,467 lumens at the 150W setting — roughly the useful output of a 400W metal halide head, using far less energy. The 0-10V dimming driver drops output down to 10 percent for off-hours light-level tuning when paired with a compatible dimming circuit.

Features

• Field-Adjustable Wattage: 150W / 90W / 78W selectable on the housing (factory default 150W)
• Light Output: Up to 19,467 lumens at the 150W setting; equivalent to a 400W metal halide fixture
• Color Temperature: 3000K (Warm), 82 CRI
• Distribution: Type IV semicircular pattern for pole-mounted perimeter and roadway lighting
• Input Voltage: 480V, 50/60 Hz
• Dimming: 0-10V dimming driver, dims to 10 percent (requires separate 0-10V control circuit)
• Mounting: 2-3/8 inch slipfitter with stainless steel hardware; rotates in 5-degree tilt increments
• Housing & Lens: Die-cast aluminum housing, polycarbonate lens, aluminum reflector with white polycarbonate
• Ingress Protection: IP66 rated for dust and water; high-temperature silicone gaskets
• Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
• Cold-Weather Start: Rated down to -40°F (-40°C)
• Lifespan: 100,000-hour L70 based on IES LM-80 data and TM-21 calculations
• Finish: White

Ideal For: Parking Lots • Retail Perimeters • Business Complexes • Distribution Yards • Municipal Streets

UL Listed for wet locations; IP66 rated. Requires a separate 0-10V control circuit for dimming. Factory shipped at 150W; wattage step selection is made on the housing at install.
