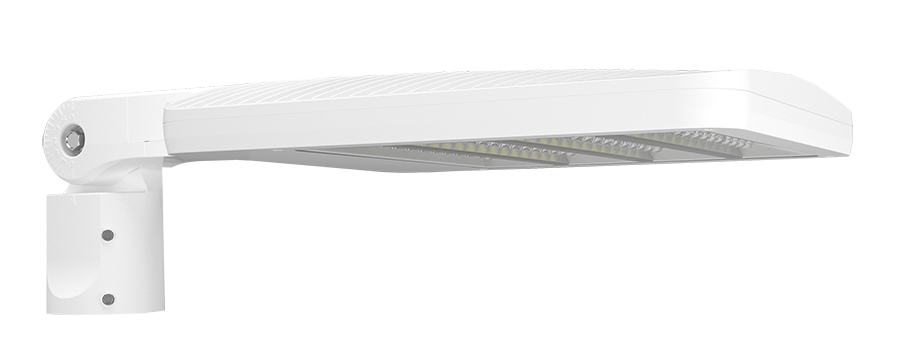

RAB ALED 78W-90W-150W Type IV 4000K 480V With Slipfitter 7-Pin Receptacle White (ALEDM4TSFNW/480/7PR)

RAB ALED 78W-90W-150W Type IV 4000K 480V With Slipfitter 7-Pin Receptacle White (ALEDM4TSFNW/480/7PR)

SKU ALEDM4TSFNW/480/7PR
by RAB
$1,097.00 - $1,097.00
$1,097.00
Backorder: Usually Ships in 4-7 Days
Product Description

This ALED Medium T4 area light slides onto a standard 2-3/8-inch slipfitter tenon and casts a semicircular Type IV distribution built for pole-mounted perimeter work — parking lot edges, roadway shoulders, and property lines where the light needs to reach forward and out to the sides without wasted spill behind the pole. A field-adjustable driver steps output between 78, 90, and 150 watts on site, so one SKU covers a range of pole spacings and mounting heights. The 7-pin ANSI C136.41 receptacle on top accepts photocontrols and networked control nodes (sold separately), letting the fixture plug into scheduling, dimming, or monitoring through a site-wide controls system.

Features

  • Field-Adjustable Output: Three discrete wattage steps at 78W, 90W, and 150W (factory set to 150W)
  • Light Output: 10,750 / 12,911 / 19,644 lumens at 78W / 90W / 150W
  • Efficacy: Up to 143.7 lumens per watt
  • Color Temperature: 4000K neutral white
  • Color Rendering: 84 CRI
  • Distribution: Type IV semicircular pattern for perimeter and roadway coverage
  • Input Voltage: 480V input
  • Dimming: 0-10V dimmable down to 10% (separate dimming circuit required)
  • Controls Interface: 7-pin ANSI C136.41 receptacle for photocontrols and networked control nodes
  • HID Equivalent: Replaces up to 400W metal halide
  • Mounting: 2-3/8" slipfitter with stainless steel hardware; rotates in 5-degree increments for precise aiming
  • Housing: Die-cast aluminum with polycarbonate lens and high-temperature silicone gaskets
  • Finish: White powder coat
  • Sealing: IP66 rated against dust and water ingress
  • Cold Weather Starting: Starts reliably down to -40°F (-40°C)
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Vibration Rating: 3G per ANSI C136.31
  • LED Lifespan: 100,000-hour L70 rated life based on IES LM-80 testing and TM-21 calculations

Ideal For: Parking Lot Perimeters • Roadways • Building Exteriors • Loading Zones • Service Drives • Metal Halide Retrofits

UL Listed for wet locations. Mounts to standard 2-3/8-inch slipfitter tenon arms. Photocontrol or network node sold separately.

Frequently Asked Questions
How bright is this product?
This product offers 10601/12893/19518 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 4000K, delivering cool white light with a crisp, clean appearance and clear visual definition.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
