Product Description

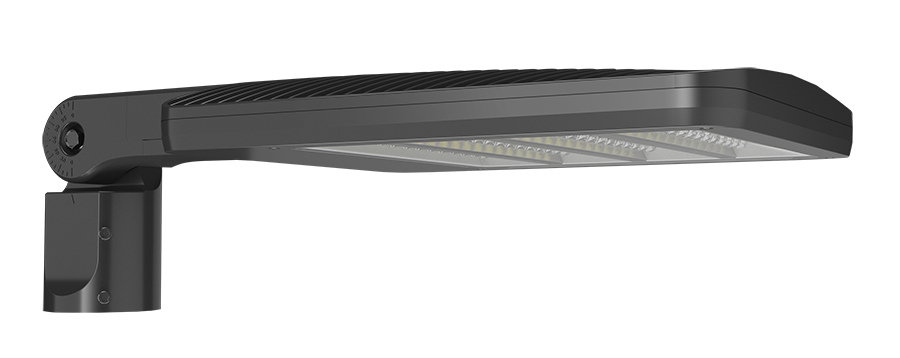

This medium-frame ALED area light slips over a 2-3/8 inch horizontal tenon and locks in place with stainless steel hardware, delivering up to 19,073 lumens of Type IV asymmetric distribution across parking lots, service drives, and building perimeters. The bronze die-cast aluminum head rotates in 5-degree increments for precise aim once the pole is set, and field-adjustable output steps between 150W, 90W, and 78W in three discrete positions so a single SKU covers a wide range of pole heights and coverage targets.
The 5000K cool white output at 85/85/84 CRI pairs with a Type IV distribution that was designed for side-of-building and perimeter mounting: the semicircular pattern throws even lateral coverage from 90° to 270° and pushes light out to the edge of the property line rather than wasting it behind the pole. This is the 480V single-voltage build for high-voltage commercial and industrial services, distinct from the 120-277V multi-tap version. A factory-installed ANSI C136.41 seven-pin receptacle on top accepts wireless networked controllers, photocells, and smart-city nodes for centralized dimming, scheduling, and outage reporting.
Features
-
Wattage: Field-adjustable 150W / 90W / 78W in three discrete steps (150W factory default), equivalent to a 400W metal halide fixture
-
Lumen Output: 19,073 / 12,634 / 10,452 lumens at 150W / 90W / 78W (up to 140.8 lumens per watt)
-
Color: 5000K cool white, 85/85/84 CRI, 7-step MacAdam Ellipse binning for fixture-to-fixture consistency
-
Distribution: Type IV asymmetric, purpose-built for perimeter and side-of-building mounting
-
Voltage & Dimming: 480V, 0-10V dimming down to 10%
-
Housing: Die-cast aluminum with bronze finish, polycarbonate lens, high-temperature silicone gaskets
-
Ingress Protection: IP66 rated for dust and water ingress
-
Mount: 2-3/8 inch slipfitter with stainless steel hardware, rotates in 5-degree increments for precise aim
-
Rated Life: 100,000 hours L70 (based on IES LM-80 results and TM-21 calculations)
-
Cold Start: Reliable starting down to -40°F (-40°C)
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Vibration Rating: 3G per ANSI C136.31 (suitable for bridge and overpass applications)
-
Controls Receptacle: ANSI C136.41 seven-pin, compatible with wireless networked control systems and photocell controllers (controller sold separately)
Ideal For: Parking Lots • Service Drives • Loading Zones • Building Perimeters • Commercial Campuses • Industrial Sites
UL Listed for wet locations, IP66 rated for dust and water ingress. Fits a standard 2-3/8 inch horizontal tenon. The 0-10V dimming driver requires a separate DC dimming circuit. Confirm service voltage before ordering; this build is 480V only, not compatible with 120-277V circuits.
