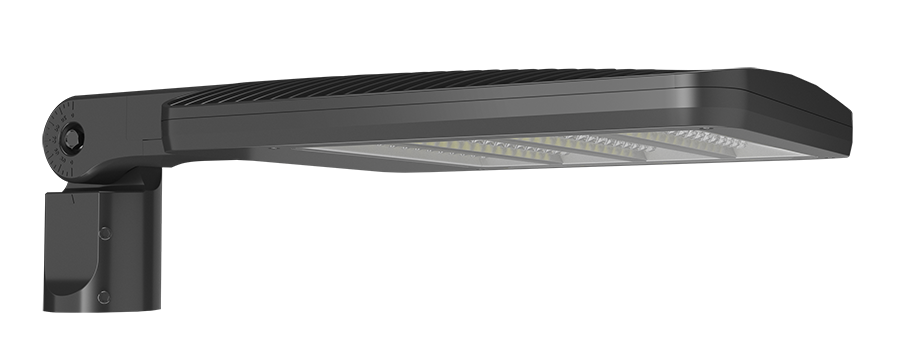

RAB ALED 78W-90W-150W Type IV 5000K With Slipfitter Bronze (ALEDM4TSF)

RAB ALED 78W-90W-150W Type IV 5000K With Slipfitter Bronze (ALEDM4TSF)

SKU ALEDM4TSF
by RAB
$957.00 - $957.00
$957.00
Backorder: Usually Ships in 4-7 Days
Product Description

This medium-frame ALED area light slips over a 2-3/8 inch horizontal tenon and locks in place with stainless steel hardware, delivering up to 19,204 lumens of Type IV asymmetric distribution across parking lots, service drives, and building perimeters. The bronze die-cast aluminum head rotates in 5-degree increments for precise aim once the pole is set, and field-adjustable output steps between 150W, 90W, and 78W in three discrete positions so a single SKU covers a wide range of pole heights and coverage targets.

The 5000K cool white output at 85 CRI pairs with a Type IV distribution that was designed for side-of-building and perimeter mounting: the semicircular pattern throws even lateral coverage from 90° to 270° and pushes light out to the edge of the property line rather than wasting it behind the pole.

Features

  • Wattage: Field-adjustable 150W / 90W / 78W in three discrete steps (150W factory default), equivalent to a 400W metal halide fixture
  • Lumen Output: 19,204 / 12,625 / 10,610 lumens at 150W / 90W / 78W (up to 141.1 lumens per watt)
  • Color: 5000K cool white, 85 CRI, 7-step MacAdam Ellipse binning for fixture-to-fixture consistency
  • Distribution: Type IV asymmetric, purpose-built for perimeter and side-of-building mounting
  • Voltage & Dimming: 120-277V multi-tap, 0-10V dimming down to 10%
  • Housing: Die-cast aluminum with bronze finish, polycarbonate lens, high-temperature silicone gaskets
  • Ingress Protection: IP66 rated for dust and water ingress
  • Mount: 2-3/8 inch slipfitter with stainless steel hardware, rotates in 5-degree increments for precise aim
  • Rated Life: 100,000 hours L70 (based on IES LM-80 results and TM-21 calculations)
  • Cold Start: Reliable starting down to -40°F (-40°C)
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Vibration Rating: 3G per ANSI C136.31 (suitable for bridge and overpass applications)

Ideal For: Parking Lots • Service Drives • Loading Zones • Building Perimeters • Commercial Campuses • Industrial Sites

UL Listed for wet locations, IP66 rated for dust and water ingress. Fits a standard 2-3/8 inch horizontal tenon. The 0-10V dimming driver requires a separate DC dimming circuit.

Frequently Asked Questions
How bright is this product?
This product offers 10610/12625/19204 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 85, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
