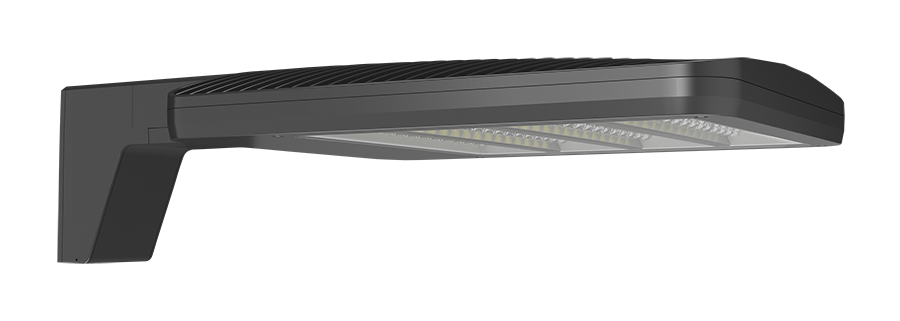

RAB ALED 78W-90W-150W Type IV 4000K 480V Pole Mount Bronze (ALEDM4TN/480)

RAB ALED 78W-90W-150W Type IV 4000K 480V Pole Mount Bronze (ALEDM4TN/480)

SKU ALEDM4TN/480
by RAB
$1,050.00 - $1,050.00
$1,050.00
Backorder: Usually Ships in 4-7 Days
Product Description

This medium-frame ALED area light mounts to a pole using its universal arm bracket, delivering up to 19,518 lumens of Type IV asymmetric distribution across parking lots, service drives, and building perimeters. The bronze die-cast aluminum housing carries a 0-10V dimming driver and steps between 150W, 90W, and 78W in three discrete field-adjustable positions, so a single SKU covers a range of pole heights and coverage targets without stocking multiple part numbers.

The 4000K neutral white output at 84/84/83 CRI pairs with a Type IV distribution that was designed for side-of-building and perimeter mounting: the semicircular pattern throws even lateral coverage from 90° to 270° and pushes light out to the edge of the property line rather than wasting it behind the pole. This is the 480V single-voltage build for high-voltage commercial and industrial services, distinct from the 120-277V multi-tap version.

Features

  • Wattage: Field-adjustable 150W / 90W / 78W in three discrete steps (150W factory default), equivalent to a 400W metal halide fixture
  • Lumen Output: 19,518 / 12,893 / 10,601 lumens at 150W / 90W / 78W (up to 143 lumens per watt)
  • Color: 4000K neutral white, 84/84/83 CRI, 7-step MacAdam Ellipse binning for fixture-to-fixture consistency
  • Distribution: Type IV asymmetric, purpose-built for perimeter and side-of-building mounting
  • Voltage & Dimming: 480V, 0-10V dimming down to 10%
  • Housing: Die-cast aluminum with bronze finish, polycarbonate lens, high-temperature silicone gaskets
  • Ingress Protection: IP66 rated for dust and water ingress
  • Mount: Universal arm bracket for 1 inch to 3 inch hole spacing (round pole adapter plate included)
  • Rated Life: 100,000 hours L70 (based on IES LM-80 results and TM-21 calculations)
  • Cold Start: Reliable starting down to -40°F (-40°C)
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Vibration Rating: 3G per ANSI C136.31 (suitable for bridge and overpass applications)

Ideal For: Parking Lots • Service Drives • Loading Zones • Building Perimeters • Commercial Campuses • Industrial Sites

UL Listed for wet locations, IP66 rated for dust and water ingress. Universal arm bracket accepts 1 inch to 3 inch pole hole spacing; round pole adapter plate included. The 0-10V dimming driver requires a separate DC dimming circuit. Confirm service voltage before ordering; this build is 480V only, not compatible with 120-277V circuits.

Frequently Asked Questions
How bright is this product?
This product offers 10601/12893/19518 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 4000K, delivering cool white light with a crisp, clean appearance and clear visual definition.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
