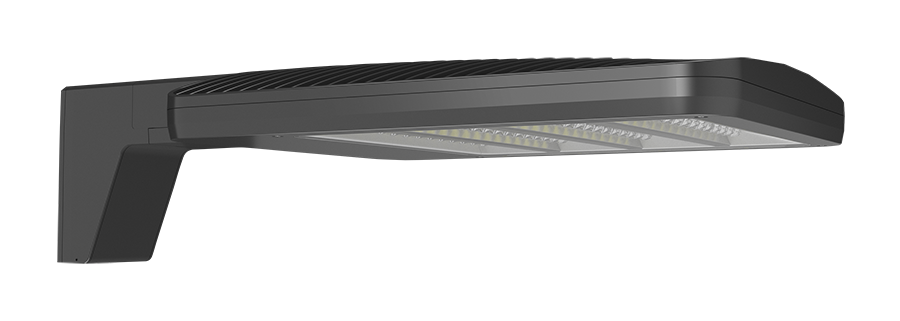

RAB ALED 78W-90W-150W Type IV 5000K 480V Pole Mount Bronze (ALEDM4T/480)

This medium ALED area light delivers 5000K cool-white output through a Type IV distribution, producing a forward-throw semicircular pattern especially suited to perimeter parking rows, the sides of buildings, and boundary lighting where light needs to project away from the mounting surface. Cool 5000K light lifts surface contrast for security cameras and appears crisper than warm color temperatures at the same lumen level. The bronze die-cast aluminum housing blends into standard commercial pole finishes and keeps a low visual profile against masonry and concrete.

The 480V high-voltage driver suits industrial and campus sites where 480V service reaches the fixture location, cutting conductor sizing on long runs from the distribution panel to distant poles. 0-10V dimming lets the fixture step down for scheduled dim-back or daylight harvesting on a separate low-voltage circuit.

Features

• Field-Adjustable Output: select 78W, 90W, or 150W at install (150W factory default) — one SKU covers three pole-power targets
• Output at 150W: 19,204 lumens at 131 lumens per watt, 85 CRI, 3-step MacAdam Ellipse color consistency
• Replaces: 400W metal halide
• Housing: die-cast aluminum with polycarbonate lens, high-temperature silicone gaskets, IP66 rated for dust and water
• Dimming: 0-10V standard, dims to 10% (separate 0-10V DC circuit required)
• Cold-Weather Start: -40°F (-40°C) minimum starting temperature; 3G vibration rating per ANSI C136.31

Ideal For: Perimeter Parking Rows • Building Sides • Boundary Lighting • Wall-Mounted Building Fronts • Loading Zones • Fence-Line Applications

UL Listed for wet locations. Requires 0-10V dimming circuit for dimming control.
