Product Description

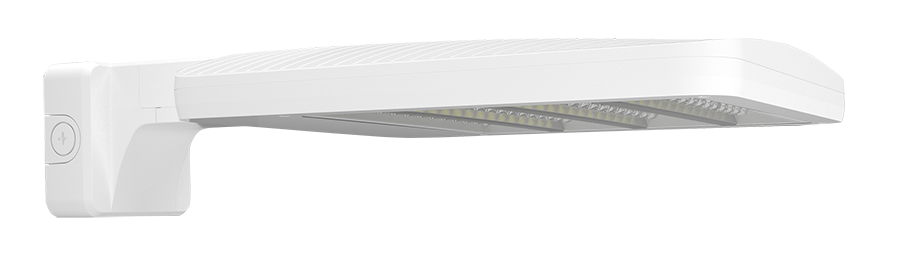

This medium ALED area light mounts directly to a wall or vertical building surface, throwing broad, controlled 3000K warm-white output across parking areas, service drives, and loading zones without requiring a pole. A Type III forward-throw distribution pushes the beam outward from the mounting surface, filling perimeter zones with the pool of light needed to cover the area from one fixture. The die-cast aluminum housing comes in matte white to coordinate with lighter facades, healthcare campuses, and retail exteriors.
The 480V high-voltage driver suits industrial and campus sites where 480V service reaches the fixture location, cutting conductor sizing on long runs from the distribution panel to distant poles. 0-10V dimming lets the fixture step down for scheduled dim-back or daylight harvesting on a separate low-voltage circuit.
Features
-
Field-Adjustable Output: select 78W, 90W, or 150W at install (150W factory default) — one SKU covers three pole-power targets
-
Output at 150W: 19,123 lumens at 142.1 lumens per watt, 81 CRI, 3-step MacAdam Ellipse color consistency
-
Replaces: 400W metal halide
-
Housing: die-cast aluminum with polycarbonate lens, high-temperature silicone gaskets, IP66 rated for dust and water
-
Dimming: 0-10V standard, dims to 10% (separate 0-10V DC circuit required)
-
Cold-Weather Start: -40°F (-40°C) minimum starting temperature; 3G vibration rating per ANSI C136.31
Ideal For: Parking Areas • Loading Docks • Service Drives • Building Perimeters • Warehouse Yards • Wall Pack Replacement
UL Listed for wet locations. Dark Sky Approved — conforms to the International Dark-Sky Association fully-shielded fixture requirement, emitting no light above 90 degrees. Requires 0-10V dimming circuit for dimming control.
