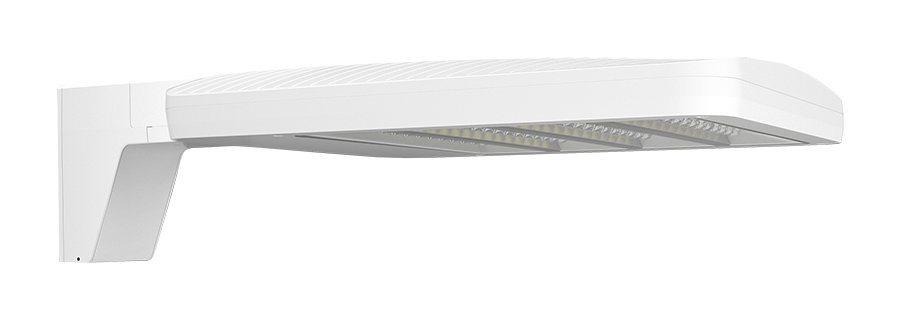

RAB ALED 78W-90W-150W Type III 5000K 480V Pole Mount White (ALEDM3TW/480)

RAB ALED 78W-90W-150W Type III 5000K 480V Pole Mount White (ALEDM3TW/480)

SKU ALEDM3TW/480
by RAB
$1,050.00 - $1,050.00
$1,050.00
Backorder: Usually Ships in 4-7 Days
Product Description

This ALED area light attaches to a pole with a universal mounting arm that covers hole-spacing patterns from 1 inch to 3 inch center-to-center, so one SKU fits most existing pole-drill patterns. A round-pole adapter plate is included so retrofits on tubular poles need no separate accessory.

The 5000K cool color temperature produces bright, clean daylight for security-focused applications where clarity matters and cameras need crisp contrast. The white housing blends into light-colored building facades or silver-finished aluminum poles. Field-adjustable output covers three wattage tiers on one SKU, so a single fixture works for full parking-lot output, mid-brightness perimeter runs, or lower-light walkway spillover — and one part number spans replacement scenarios that used to need three separate SKUs.

Wired for 480V systems where higher-voltage feeds are already in place, with a 0-10V dimming driver that runs down to 10% standard.

Features

  • Wattage: Field-selectable 150W / 90W / 78W in three discrete steps (150W factory default)
  • Light Output: Up to 18,998 lumens at the 150W setting
  • Color Temperature: 5000K (cool white)
  • Color Rendering: 85 CRI
  • Optic: Type III distribution — throws light outward from the mounting point, ideal for roadway edges, general parking, and applications needing a broad, evenly-spread pool of light
  • Wattage Equivalency: Replaces a 400W metal halide fixture
  • Voltage: 480V, 50/60 Hz
  • Dimming: 0-10V dimming down to 10% (requires separate 0-10V DC dimming circuit)
  • Mounting: Universal mounting arm compatible with hole-spacing patterns from 1 inch to 3 inch center-to-center; round-pole adapter plate included
  • Housing & Finish: Die-cast aluminum housing in a durable white finish, with polycarbonate lens and high-temperature silicone gaskets
  • LED Lifespan: 100,000 hours (L70) based on IES LM-80 and TM-21 calculations
  • Ingress Protection: IP66 rated for dust and water intrusion
  • Cold-Weather Starting: Reliable starting down to -40°F / -40°C
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Vibration Rating: 3G per ANSI C136.31

Ideal For: Parking Lots • Service Drives • Roadway Edges • Commercial Campuses • Industrial Yards • Municipal Facilities

UL Listed and suitable for wet locations.

Frequently Asked Questions
How bright is this product?
This product offers 10411/12584/18998 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
