Product Description

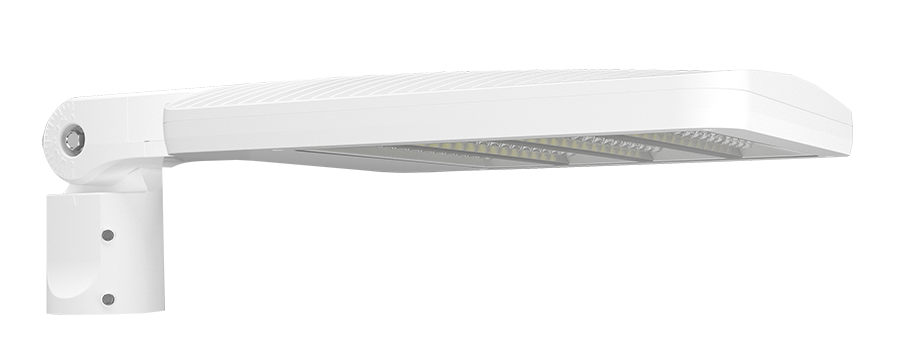

This ALED area light mounts to a 2-3/8 inch tenon at the top of a round or square pole, throwing a wide Type III pattern across parking lots, service drives, and open commercial ground where a pole-mounted fixture puts light on the pavement without spilling onto adjacent property.
The warm 3000K color temperature softens the visual impact on adjacent buildings and residential edges of a lot, keeping the site well-lit without producing the stark cool cast that some neighborhoods and HOAs push back on. The white housing blends into light-colored building facades or silver-finished aluminum poles. Field-adjustable output covers three wattage tiers on one SKU, so a single fixture works for full parking-lot output, mid-brightness perimeter runs, or lower-light walkway spillover — and one part number spans replacement scenarios that used to need three separate SKUs.
Wired for 480V systems where higher-voltage feeds are already in place, with a 0-10V dimming driver that runs down to 10% standard.
Features
-
Wattage: Field-selectable 150W / 90W / 78W in three discrete steps (150W factory default)
-
Light Output: Up to 19,123 lumens at the 150W setting
-
Color Temperature: 3000K (warm white)
-
Color Rendering: 81 CRI
-
Optic: Type III distribution — throws light outward from the mounting point, ideal for roadway edges, general parking, and applications needing a broad, evenly-spread pool of light
-
Wattage Equivalency: Replaces a 400W metal halide fixture
-
Voltage: 480V, 50/60 Hz
-
Dimming: 0-10V dimming down to 10% (requires separate 0-10V DC dimming circuit)
-
Mounting: 2-3/8 inch slipfitter mount with stainless steel hardware; rotates in 5° increments
-
Housing & Finish: Die-cast aluminum housing in a durable white finish, with polycarbonate lens and high-temperature silicone gaskets
-
LED Lifespan: 100,000 hours (L70) based on IES LM-80 and TM-21 calculations
-
Ingress Protection: IP66 rated for dust and water intrusion
-
Cold-Weather Starting: Reliable starting down to -40°F / -40°C
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Vibration Rating: 3G per ANSI C136.31
Ideal For: Parking Lots • Service Drives • Roadway Edges • Commercial Campuses • Industrial Yards • Municipal Facilities
UL Listed and suitable for wet locations. Dark Sky Approved with full 90° cutoff for use in dark-sky compliant municipalities, and LUNA 5.1 listed for night-sky friendly applications.
