RAB ALED 78W-90W-150W Type III 5000K With Slipfitter White (ALEDM3TSFW)

RAB ALED 78W-90W-150W Type III 5000K With Slipfitter White (ALEDM3TSFW)

SKU ALEDM3TSFW
by RAB
$957.00 - $957.00
$957.00
Backorder: Usually Ships in 4-7 Days
Product Description

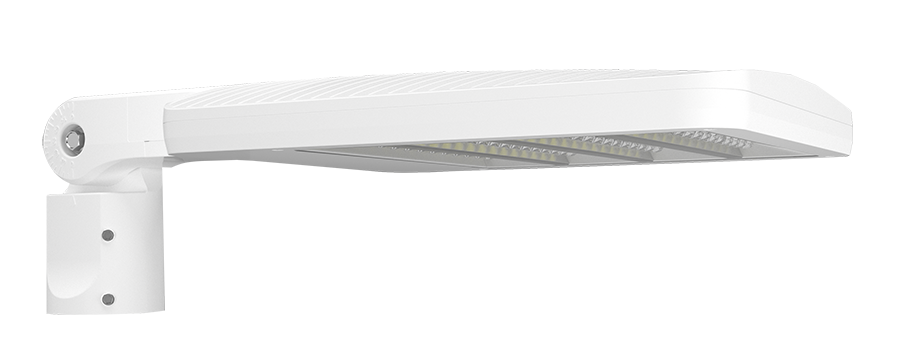

This ALED medium-housing area light mounts to a 2-3/8 inch round pole tenon and delivers Type 3 distribution — a broad, forward-throwing pattern designed to fill parking lots, service drives, and commercial sites from pole positions along the edge of the area. Field-adjustable output steps between 78W, 90W, and 150W (150W factory default), so one SKU covers a range of light-level targets, and at the top setting the fixture replaces a 400-watt metal halide while running on a fraction of the energy.

Accepts standard 120-277V input, covering most commercial and light-industrial service without a separate driver order. 0-10V dimming is standard, dimming down to 10 percent, so pairing the fixture with an external dimmer, timeclock, or photocontrol for scheduling and light-level tuning is straightforward. The white finish sits on a die-cast aluminum housing formulated for high-durability outdoor exposure, and the 5000K color temperature produces a cool white that maximizes perceived brightness for security and high-visibility applications.

Features

  • Wattage: Field-adjustable 78W / 90W / 150W (150W factory default); replaces a 400-watt metal halide at top setting
  • Light Output: Up to 19,192 lumens at the 150W setting; field-adjustable to 90W and 78W steps
  • Color Temperature: 5000K (cool white)
  • Color Accuracy: Up to 85 CRI
  • Input Voltage: 120-277V
  • Dimming: 0-10V dimmable standard, dims to 10 percent
  • Distribution: IES Type 3 (forward throw for perimeter pole mounting)
  • Mounting: 2-3/8 inch slipfitter for round pole tenons; stainless steel hardware; rotates in 5-degree tilt increments
  • Ingress Protection: IP66 (dust-tight, protected against powerful water jets)
  • Surge Protection: 10kV line-to-line, 6kV line-to-ground
  • Cold Weather Starting: -40°F minimum
  • Vibration Rating: 3G per ANSI C136.31 (bridge and roadway rated)
  • Lifespan: 100,000-hour L70 rated life
  • Housing / Lens: Die-cast aluminum housing, polycarbonate lens, high-temperature silicone gaskets
  • Finish: White
  • Weight: 17.8 pounds

Ideal For: Parking Lots • Auto Dealerships • Loading Docks • Warehouse Yards • Service Drives • Campus Grounds • Fuel Stations • Municipal Sites

UL Listed and suitable for wet locations. Mounts to a 2-3/8 inch round horizontal pole tenon; pole and mounting arm sold separately.

Frequently Asked Questions
How bright is this product?
This product offers 10603/12617/19192 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
What is the CRI and how does it affect light quality?
This product has a CRI of 85, delivering good color accuracy with natural, balanced color rendering. Colors will appear clear and consistent under this light.
