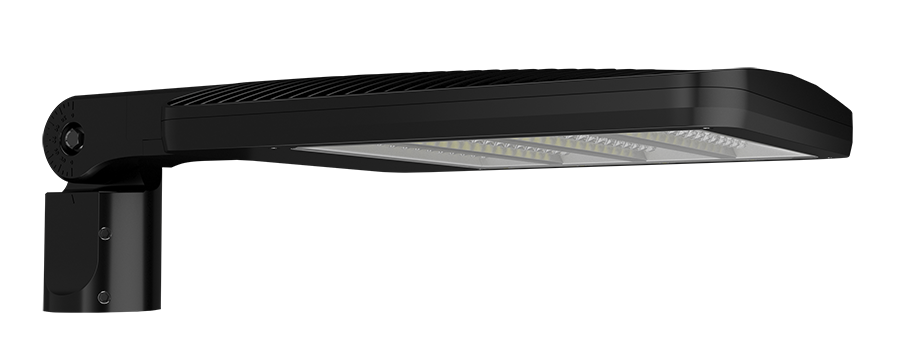

RAB ALED 78W-90W-150W Type III 4000K 480V With Slipfitter 7-Pin Receptacle Black (ALEDM3TSFNB/480/7PR)

RAB ALED 78W-90W-150W Type III 4000K 480V With Slipfitter 7-Pin Receptacle Black (ALEDM3TSFNB/480/7PR)

SKU ALEDM3TSFNB/480/7PR
by RAB
$1,097.00 - $1,097.00
$1,097.00
Backorder: Usually Ships in 4-7 Days
Product Description

This ALED medium-housing area light mounts to a 2-3/8 inch round pole tenon and delivers Type 3 distribution — a broad, forward-throwing pattern designed to fill parking lots, service drives, and commercial sites from pole positions along the edge of the area. Field-adjustable output steps between 78W, 90W, and 150W (150W factory default), so one SKU covers a range of light-level targets, and at the top setting the fixture replaces a 400-watt metal halide while running on a fraction of the energy.

Wired for 480V service, it matches the higher-voltage feeds common on industrial sites, large commercial buildings, and long pole runs where 480V reduces wire size and voltage drop. An ANSI C136.41 7-pin receptacle on top accepts a photocontrol or a wireless-networked control node (sold separately) for scheduling, dimming, and utility-grid integration. The black finish sits on a die-cast aluminum housing formulated for high-durability outdoor exposure, and the 4000K color temperature produces a neutral white that balances color accuracy with high output for security applications where clarity matters.

Features

  • Wattage: Field-adjustable 78W / 90W / 150W (150W factory default); replaces a 400-watt metal halide at top setting
  • Light Output: Up to 19,639 lumens at the 150W setting; field-adjustable to 90W and 78W steps
  • Color Temperature: 4000K (neutral white)
  • Color Accuracy: Up to 84 CRI
  • Input Voltage: 480V
  • Controls: ANSI C136.41 7-pin receptacle for photocontrols and networked control modules; 0-10V dimming standard
  • Distribution: IES Type 3 (forward throw for perimeter pole mounting)
  • Mounting: 2-3/8 inch slipfitter for round pole tenons; stainless steel hardware; rotates in 5-degree tilt increments
  • Ingress Protection: IP66 (dust-tight, protected against powerful water jets)
  • Surge Protection: 10kV line-to-line, 6kV line-to-ground
  • Cold Weather Starting: -40°F minimum
  • Vibration Rating: 3G per ANSI C136.31 (bridge and roadway rated)
  • Lifespan: 100,000-hour L70 rated life
  • Housing / Lens: Die-cast aluminum housing, polycarbonate lens, high-temperature silicone gaskets
  • Finish: Black
  • Weight: 17.8 pounds

Ideal For: Parking Lots • Auto Dealerships • Loading Docks • Warehouse Yards • Service Drives • Campus Grounds • Fuel Stations • Municipal Sites

UL Listed and suitable for wet locations. Mounts to a 2-3/8 inch round horizontal pole tenon; pole and mounting arm sold separately.

Frequently Asked Questions
How bright is this product?
This product offers 10667/12973/19639 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 4000K, delivering cool white light with a crisp, clean appearance and clear visual definition.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
