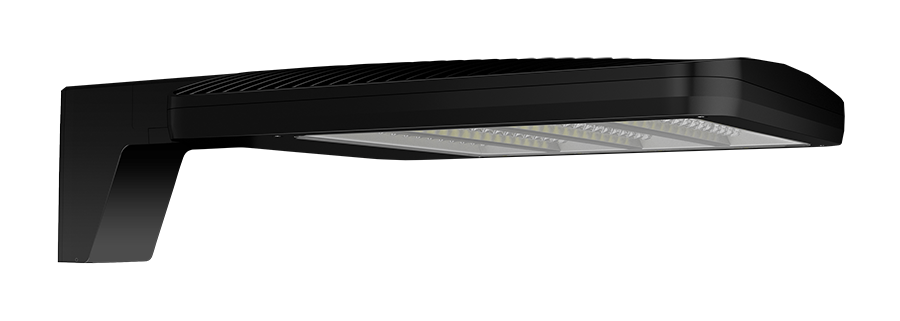

RAB ALED 78W-90W-150W Type III 4000K 480V Pole Mount 7-Pin Receptacle Black (ALEDM3TNB/480/7PR)

RAB ALED 78W-90W-150W Type III 4000K 480V Pole Mount 7-Pin Receptacle Black (ALEDM3TNB/480/7PR)

SKU ALEDM3TNB/480/7PR
by RAB
$1,097.00 - $1,097.00
$1,097.00
Backorder: Usually Ships in 4-7 Days
Product Description

This ALED area light mounts on a universal arm designed for poles or wall brackets with 1-inch to 3-inch mounting hole spacing, projecting broad Type III light across parking areas, roadways, and general open-area applications. Field-adjustable output steps between 78, 90, and 150 watts so one SKU covers a range of pole heights and photometric targets without swapping fixtures.

4000K neutral white produces a clean, natural-looking light suited to security applications where color accuracy matters, and the black die-cast aluminum housing keeps the fixture visually recessed against dark poles or building faces. The 480V driver serves high-voltage commercial and industrial service where dedicated 480V feeds are already in place, avoiding the need for a step-down transformer at the pole. A 7-pin receptacle on top of the fixture accepts external photocontrols or networked lighting controllers, so the site can switch to daylight harvesting or scheduling later without rewiring the driver.

Features

  • Wattage: Field-adjustable 78W / 90W / 150W (factory default 150W)
  • Light output: 10,667 / 12,973 / 19,639 lumens at 78W / 90W / 150W
  • Efficacy: 143.9 / 142.8 / 135.1 lumens per watt at 78W / 90W / 150W
  • Color: 4000K neutral white, 84/84/82 CRI, equivalent to 400W metal halide
  • Distribution: Type III, projects light outward from perimeter placement for wide-area coverage
  • Voltage: 480V input, 0-10V dimmable to 10%
  • Mount: Universal mounting arm, 1" to 3" hole-spacing pattern, round-pole adapter plate included
  • Housing: Die-cast aluminum with polycarbonate lens, black finish
  • Surge protection: 10 kV line-to-line, 6 kV line-to-ground
  • Ingress protection: IP66 rated for dust and water
  • BUG rating: B2 U0 G2 at 150W per IES TM-15
  • Lifespan: 100,000 hours L70
  • Weight: 16.5 lbs
  • Controls: 7-pin receptacle on top of the fixture for external photocontrols or networked lighting controllers

Ideal For: Parking Lots • Roadways • Service Drives • Commercial Perimeters • Loading Zones

UL Listed for wet locations. Cold-weather starting rated to -40°F ambient.

Frequently Asked Questions
How bright is this product?
This product offers 10667/12973/19639 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 4000K, delivering cool white light with a crisp, clean appearance and clear visual definition.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
