RAB ALED 78W-90W-150W Type III 4000K Pole Mount Bronze (ALEDM3TN)

RAB ALED 78W-90W-150W Type III 4000K Pole Mount Bronze (ALEDM3TN)

SKU ALEDM3TN
by RAB
$957.00 - $957.00
$957.00
Backorder: Usually Ships in 4-7 Days
Product Description

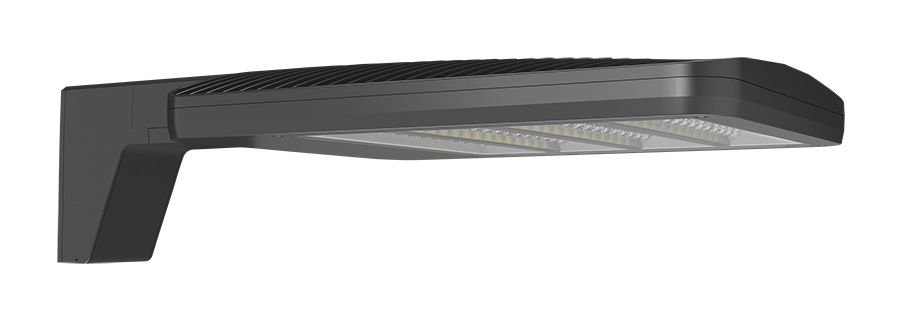

This ALED area light mounts to a pole on a universal arm bracket, delivering broad, controlled illumination for parking lots, roadways, and outdoor work areas. The Type III distribution produces a wider forward-throw pattern designed for general area lighting from a pole set back from the illuminated surface.

The 4000K neutral white output balances warmth and clarity, a neutral choice for commercial parking, service areas, and mixed-use campuses where color rendering matters but the cooler-daylight look is too stark. Field-adjustable output lets one SKU cover 150W, 90W, or 78W targets, so a single stocked fixture handles a range of pole heights and light-level requirements. The bronze finish coordinates with the standard commercial pole finishes on most retail, hospitality, and municipal sites.

Features

  • Wattage (Field-Adjustable): 150W / 90W / 78W, factory set to 150W (replaces a 400-watt metal halide)
  • Color Temperature: 4000K neutral white
  • Lumens (150W / 90W / 78W): 19,672 / 12,930 / 10,765
  • Efficacy: 131.9 to 141.6 lumens per watt across the wattage range
  • CRI: 82
  • Distribution: Type III (wider forward-throw for general area lighting)
  • Voltage: 120-277V
  • Dimming: 0-10V, down to 10% (requires a separate 0-10V dimming circuit)
  • Mounting: Universal arm bracket fits pole hole spacing from 1" to 5-1/2" center to center; round pole adapter included
  • Finish: Bronze, high-durability powder coat formulated for long-term outdoor color retention
  • Housing: Die-cast aluminum with polycarbonate lens
  • Cold-Start Temperature: -40°F
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Vibration Rating: 3G per ANSI C136.31
  • IP Rating: IP66 (dust and water)
  • Rated Life: 100,000 hours (L70)

Ideal For: Parking Lots • Commercial Campuses • Warehouses • Loading Docks • Car Dealerships • Municipal Facilities

UL Listed and suitable for wet locations.

Frequently Asked Questions
How bright is this product?
This product offers 10765/12930/19672 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 4000K, delivering cool white light with a crisp, clean appearance and clear visual definition.
What voltage does this product operate on?
This product operates on 120V-277V and is compatible with a wide range of standard residential and commercial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
