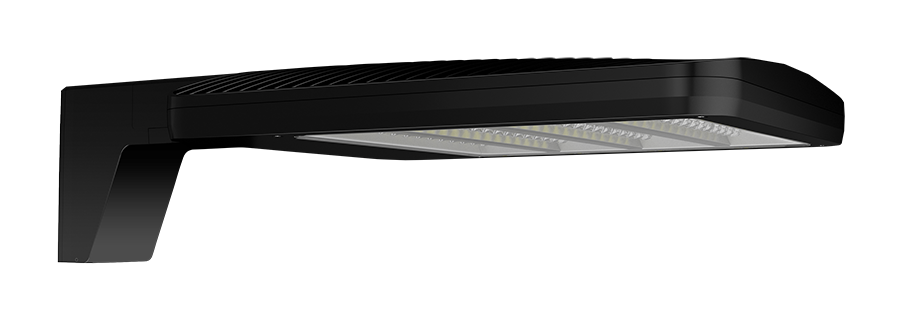

RAB ALED 78W-90W-150W Type III 5000K 480V Pole Mount 7-Pin Receptacle Black (ALEDM3TB/480/7PR)

RAB ALED 78W-90W-150W Type III 5000K 480V Pole Mount 7-Pin Receptacle Black (ALEDM3TB/480/7PR)

SKU ALEDM3TB/480/7PR
by RAB
$1,097.00 - $1,097.00
$1,097.00
Backorder: Usually Ships in 4-7 Days
Product Description

This ALED area light mounts to a pole on a universal arm bracket, delivering broad, controlled illumination for parking lots, roadways, and outdoor work areas. The Type III distribution produces a wider forward-throw pattern designed for general area lighting from a pole set back from the illuminated surface.

The 5000K cool white output delivers crisp, daylight-tone illumination for security-driven applications where clarity and visibility are the priority, from parking lots to loading zones. The 480V driver suits large commercial and industrial sites where 480V service is already run to the pole, cutting the conductor size needed for long feeder runs. Field-adjustable output lets one SKU cover 150W, 90W, or 78W targets, so a single stocked fixture handles a range of pole heights and light-level requirements. The black finish blends with a dark metal pole or a contemporary building facade.

The ANSI C136.41 7-pin receptacle on top of the housing accepts wireless lighting-control modules from major control system vendors, so the fixture is ready for centralized scheduling, dimming, and energy-management integration on day one — the module drops in without opening the housing.

Features

  • Wattage (Field-Adjustable): 150W / 90W / 78W, factory set to 150W (replaces a 400-watt metal halide)
  • Color Temperature: 5000K cool white
  • Lumens (150W / 90W / 78W): 18,998 / 12,584 / 10,411
  • Efficacy: 131.4 to 140.4 lumens per watt across the wattage range
  • CRI: 82
  • Distribution: Type III (wider forward-throw for general area lighting)
  • Voltage: 480V
  • Dimming: 0-10V, down to 10% (requires a separate 0-10V dimming circuit)
  • Wireless Control Ready: ANSI C136.41 7-pin receptacle accepts wireless control modules
  • Mounting: Universal arm bracket fits pole hole spacing from 1" to 5-1/2" center to center; round pole adapter included
  • Finish: Black, high-durability powder coat formulated for long-term outdoor color retention
  • Housing: Die-cast aluminum with polycarbonate lens
  • Cold-Start Temperature: -40°F
  • Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
  • Vibration Rating: 3G per ANSI C136.31
  • IP Rating: IP66 (dust and water)
  • Rated Life: 100,000 hours (L70)

Ideal For: Parking Lots • Commercial Campuses • Warehouses • Loading Docks • Car Dealerships • Municipal Facilities

UL Listed and suitable for wet locations.

Frequently Asked Questions
How bright is this product?
This product offers 10411/12584/18998 Selectable lumen options and features variable output allowing the brightness level to be adjusted for greater flexibility.
What color temperature is this product?
This product has a color temperature of 5000K producing bright white light that enhances clarity and detail.
What voltage does this product operate on?
This product operates on 480V and is designed for higher voltage commercial or industrial electrical systems. Always consult with an electrician regarding your specific voltage requirements.
Is this product dimmable?
This product features 0-10V dimming and requires a compatible 0-10V dimming control system, commonly used in commercial lighting applications. Make sure to confirm the dimmer's compatibility with the manufacturer.
Is this product DLC listed and eligible for rebates?
This product is DLC Premium listed, meaning it meets enhanced DesignLights Consortium (DLC) performance criteria and is typically eligible for higher-tier utility rebate programs depending on local utility guidelines. Consult with your local energy company to confirm DLC compatibility and programs.
