Product Description

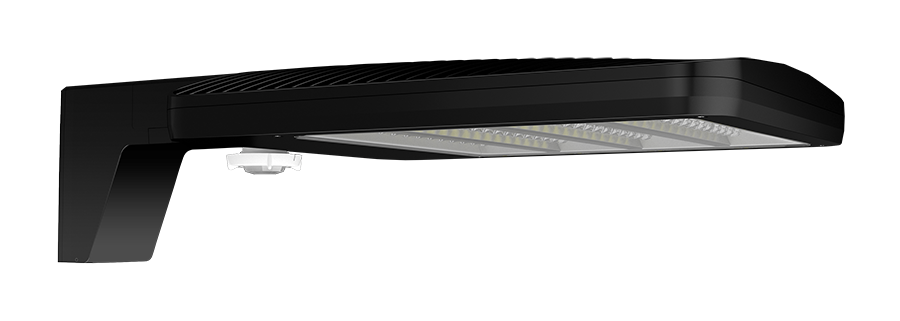

This ALED area light mounts to a pole on a universal arm bracket, delivering broad, controlled illumination for parking lots, roadways, and outdoor work areas. The Type II distribution produces a long, narrow beam pattern designed for lighting roadside applications like perimeter drives, bike paths, and walkways.
The 3000K warm white output softens the visual impact on adjacent buildings and residential neighbors, and this SKU is Dark Sky approved for installations where light-pollution ordinances apply. The 480V driver suits large commercial and industrial sites where 480V service is already run to the pole, cutting the conductor size needed for long feeder runs. Field-adjustable output lets one SKU cover 150W, 90W, or 78W targets, so a single stocked fixture handles a range of pole heights and light-level requirements. The black finish blends with a dark metal pole or a contemporary building facade.
The factory-integrated WattStop occupancy sensor covers a 180° viewing angle for detecting motion across the entire side of a building or driveway. The fixture dims when the area is unoccupied and returns to full output when motion is detected, cutting off-hours energy while keeping the site lit for security. The sensor uses a sealed, vandal-resistant molded lens rated for outdoor conditions.
Features
-
Wattage (Field-Adjustable): 150W / 90W / 78W, factory set to 150W (replaces a 400-watt metal halide)
-
Color Temperature: 3000K warm white
-
Lumens (150W / 90W / 78W): 18,366 / 12,174 / 10,046
-
Efficacy: 126.5 to 133.8 lumens per watt across the wattage range
-
CRI: 82
-
Distribution: Type II (long, narrow beam for roadside applications)
-
Voltage: 480V
-
Dimming: 0-10V, down to 10% (requires a separate 0-10V dimming circuit)
-
Occupancy Sensor: Integrated WattStop motion sensor with 180° viewing angle, sealed vandal-resistant lens
-
Mounting: Universal arm bracket fits pole hole spacing from 1" to 5-1/2" center to center; round pole adapter included
-
Finish: Black, high-durability powder coat formulated for long-term outdoor color retention
-
Housing: Die-cast aluminum with polycarbonate lens
-
Cold-Start Temperature: -40°F
-
Surge Protection: 10 kV line-to-line, 6 kV line-to-ground
-
Vibration Rating: 3G per ANSI C136.31
-
IP Rating: IP66 (dust and water)
-
Rated Life: 100,000 hours (L70)
Ideal For: Parking Lot Perimeters • Roadways • Bike Paths • Walkways • Service Drives • Loading Areas
UL Listed and suitable for wet locations. Dark Sky approved for installations governed by light-pollution ordinances.
